Toyota Sienna Service Manual: Differential oil seal

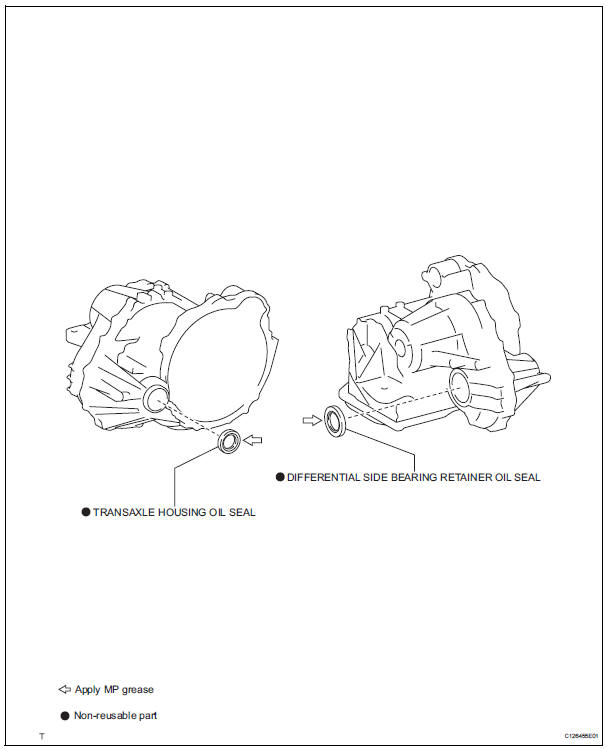

COMPONENTS

Differential oil seal

Removal
1. REMOVE FRONT WHEELS 2. REMOVE ENGINE UNDER COVER NO.1 3. DRAIN AUTOMATIC TRANSAXLE FLUID (a) Remove the drain plug, gasket and drain ATF. (b) Install a new gasket and the drain plug. Torqu ...
