Toyota Sienna Service Manual: DTC check / clear

1. CHECK DTC (USING INTELLIGENT TESTER)

CHECK DTC (USING INTELLIGENT TESTER)

  1.  Checking DTCs.

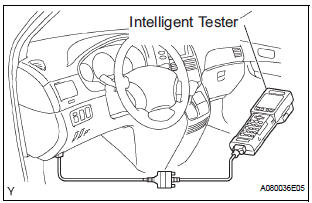

  1.  Connect the intelligent tester to the DLC3.
  2.  Turn the ignition switch ON.
  3.  Read DTCs by following the prompts on the tester screen.

HINT: Refer to the intelligent tester operator's manual for further details.

2. CLEAR DTC (USING INTELLIGENT TESTER)

  1.  Clearing the DTCs from memory.
  1. Connect the intelligent tester to the DLC3.
  2.  Turn the ignition switch ON.
  3.  Erase the DTCs following the prompts on the tester screen.

HINT: Refer to the intelligent tester operator's manual for further details.
