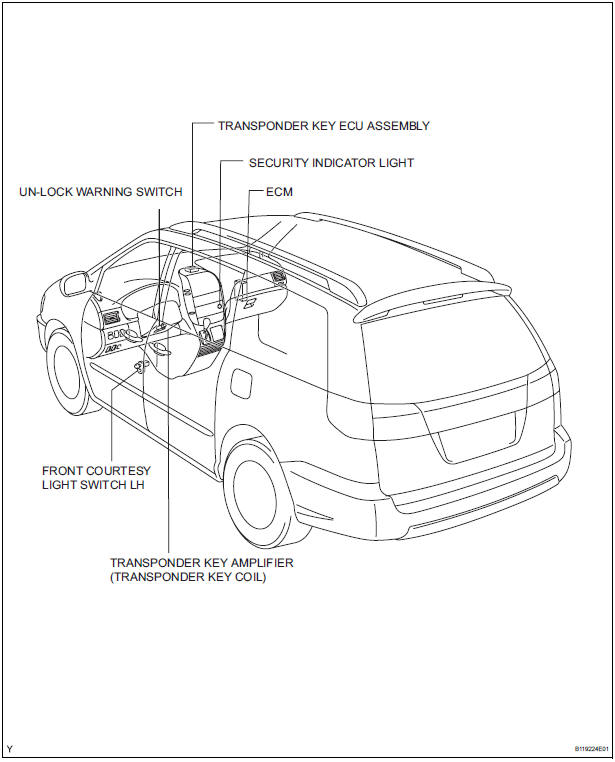

PARTS LOCATION

PARTS LOCATION

SYSTEM DESCRIPTION

The engine immobiliser system has been designed to prevent the vehicle from being stolen. This system uses a transponder key ECU that stores the key code of the authorized ignition key. If an attempt is made to start the engine using a non-authorized key, the transponder key ECU sends a signal to the ECM to prohibit fuel delivery and ignition, effectively disabling the engine.

Engine immobiliser
...

How to proceed with troubleshooting
HINT:  Use this procedure to troubleshoot the engine immobiliser system.  The intelligent tester should be used in steps 4, 5 and 7. 1 VEHICLE BROUGHT TO WORKSHOP 2 CUSTOMER PROB ...
