Toyota Sienna Service Manual: Evaporator temperature sensor
ON-VEHICLE INSPECTION
1. INSPECT A/C EVAPORATOR TEMPERATURE SENSOR
(a) Remove the A/C evaporator temperature sensor (A/ C thermistor).
(b) Disconnect the connector from the A/C evaporator temperature sensor (A/C thermistor).
(c) Measure the resistance according to the value(s) in the table below.

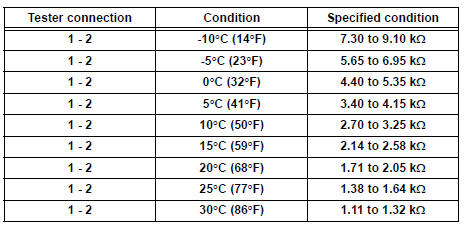

Standard resistance
NOTICE:
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring, the sensor temperature must be the same as the ambient temperature.

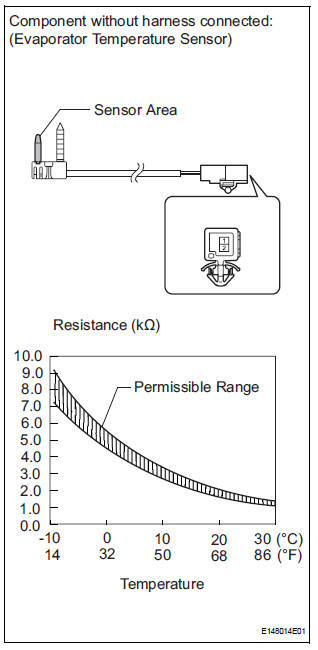

HINT: As the temperature increases, the resistance decreases (see the graph).
If the resistance is not as specified, replace the A/C evaporator temperature sensor (A/C thermistor).
