Toyota Sienna Service Manual: Front drive shaft

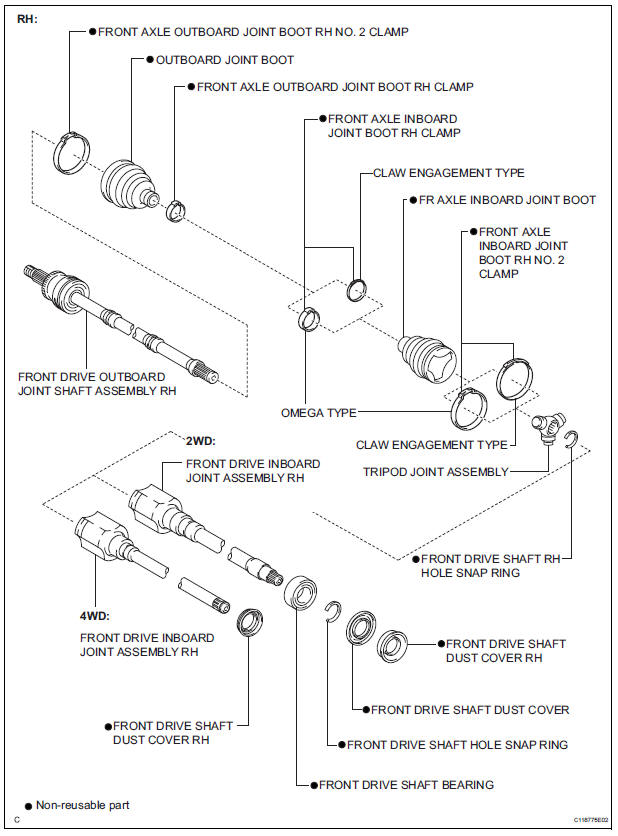

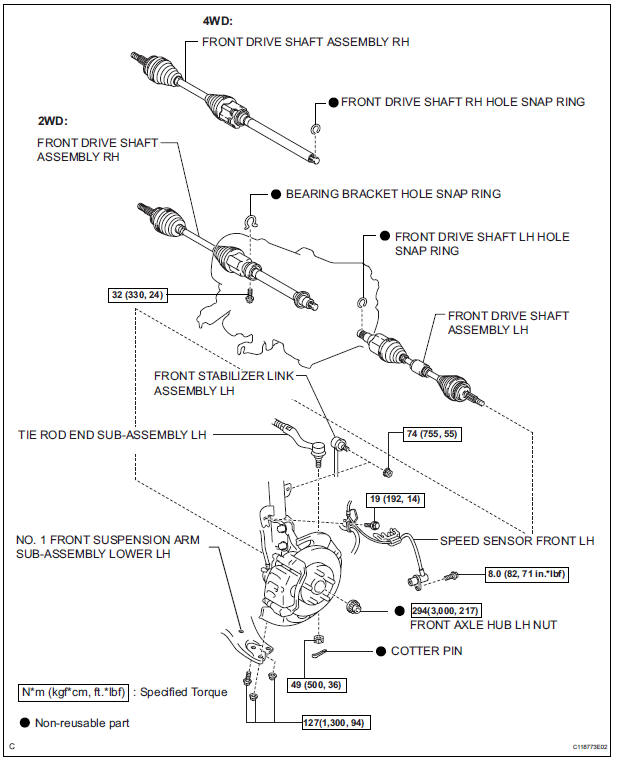

COMPONENTS

Front drive shaft

Front drive shaft

Front drive shaft

Drive shaft system
PRECAUTION 1. NOTICE OF REMOVING AND INSTALLING FRONT DRIVE SHAFT ASSEMBLY RH (a) When removing and installing the front drive shaft assembly RH in a 4WD vehicle, be sure to first drain all the t ...

Removal
1. Drain automatic transaxle fluid (a) Remove the drain plug, gasket and drain ATF. (b) Install a new gasket and the drain plug. Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf) 2. Drain transfer oil ( ...

Other materials:

Removal
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: See page EM-26 2. SECURE ENGINE (See page EM-37) 3. REMOVE GENERATOR ASSEMBLY (See page CH-17) 4. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (See page AC-227) 5. REMOVE NO. 1 ENGINE FRONT MOUNTING BRACKET LH (See page EM-42) 6. REMOVE NO. 2 IDLER PU ...

Data list / active test
HINT: By accessing the DATA LIST displayed on the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST as the first step in troubleshooting is one method to shorten labor time. 1. DATA LIST FOR CENTER ...

Installation
1. INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1) (a) Using SST, install the sensor to the exhaust manifold LH. SST 09224-00010 Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf) for use with SST 44 N*m (449 kgf*cm, 32 ft.*lbf) for use without SST HINT: Use a torque wrench with a fulcrum ...
