Toyota Sienna Service Manual: Front lower ball joint

Toyota Sienna Service Manual / Suspension / Front lower ball joint

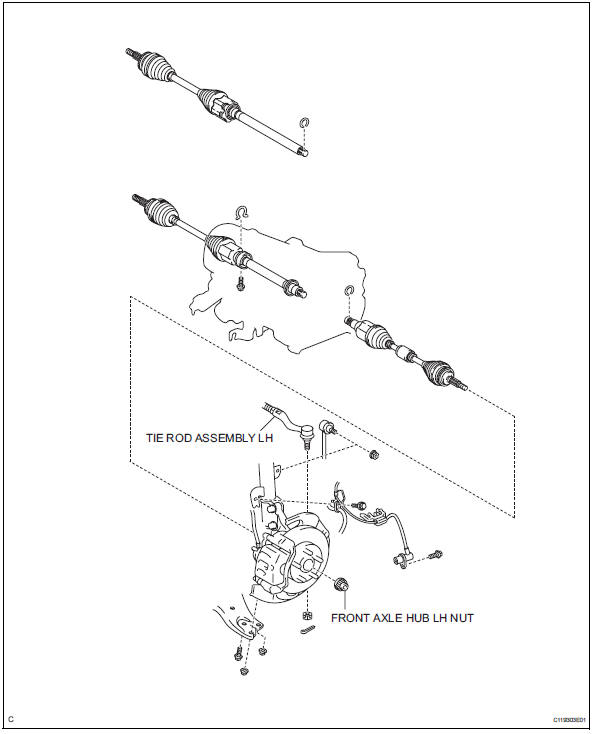

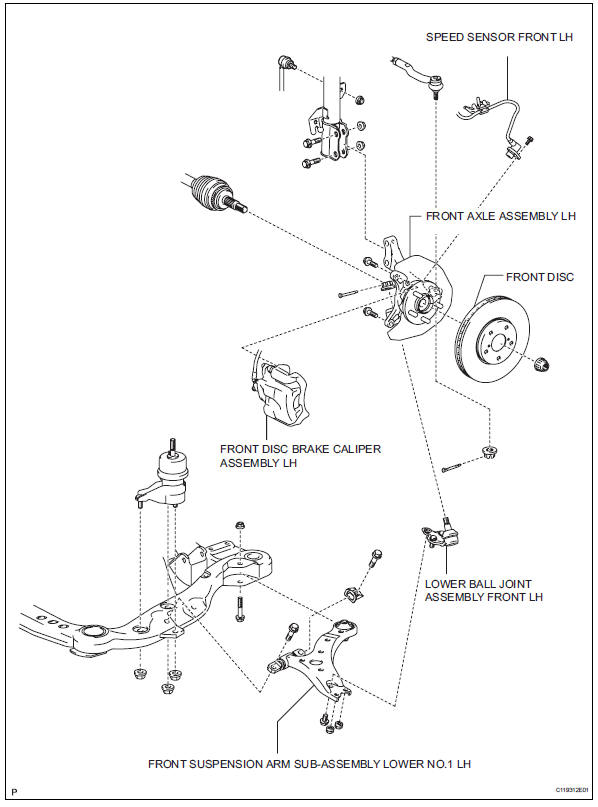

COMPONENTS

Front lower ball joint

Front lower ball joint

Installation
1. INSTALL FRONT SUSPENSION ARM SUBASSEMBLY LOWER NO.1 LH (a) Install the front lower arm bush stopper to the front suspension arm sub-assembly lower No.1 LH. (b) Install the bolt and nut to ...

Removal
1. REMOVE FRONT WHEEL 2. REMOVE FRONT AXLE HUB LH NUT HINT: (See page AH-4) SST 09930-00010 3. SEPARATE SPEED SENSOR FRONT LH HINT: (See page AH-4) 4. SEPARATE FRONT DISC BRAKE CALIPER ASSEMB ...
