Toyota Sienna Service Manual: Inspection
1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

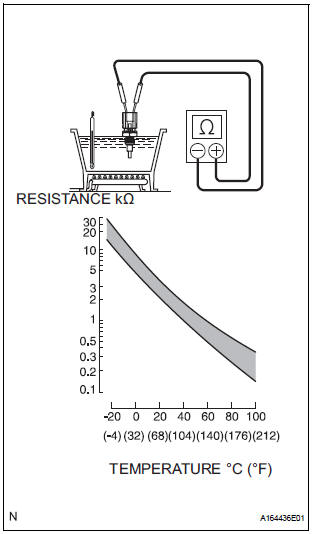

- Using an ohmmeter, measure the resistance between the terminals.
Standard resistance
- If the result is as specified, do not replace the engine coolant temperature sensor.
- If the result is not as specified, replace the engine coolant temperature sensor.
NOTICE: In case of checking the engine coolant temperature sensor in water, do not allow water to go into the terminals. After checking, dry the engine coolant temperature sensor.
Removal
1. DRAIN ENGINE COOLANT
2. REMOVE V-BANK COVER SUB-ASSEMBLY
3. REMOVE NO. 2 AIR CLEANER INLET
4. REMOVE NO. 1 AIR CLEANER INLET
5. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
6. REMOVE AIR CLEANER CASE S ...
Installation
1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
Install the engine coolant temperature sensor.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
Connect the engine coolant temperature senso ...
