Toyota Sienna Service Manual: Front lower suspension arm

Toyota Sienna Service Manual / Suspension / Front lower suspension arm

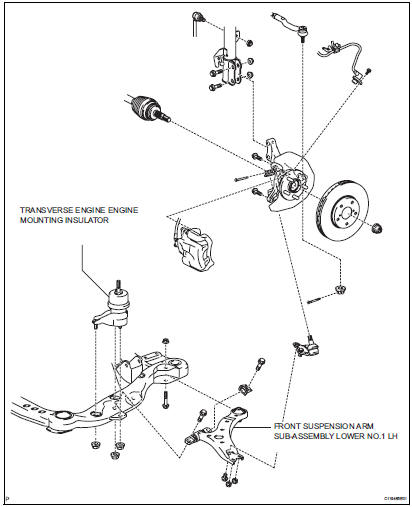

Components

Front lower suspension arm

Disposal
1. DISPOSE OF SHOCK ABSORBER ASSEMBLY FRONT LH HINT: Dispose the RH side by the same procedures as the LH side. (a) Fully extend the shock absorber rod. (b) Using a drill, make a hole in the cy ...

Removal
1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: (See page EM-34) 2. REMOVE TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR (a) Remove the 3 nuts and transverse engine engine mounting insulator. 3 ...
