VEHICLE IDENTIFICATION AND SERIAL NUMBERS

1. VEHICLE IDENTIFICATION NUMBER

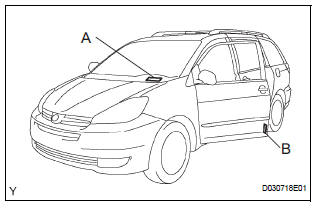

(a) The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.

A:     Vehicle Identification Number Plate B:     Certification Label

VEHICLE IDENTIFICATION NUMBER VEHICLE IDENTIFICATION NUMBER

2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

(a) The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.

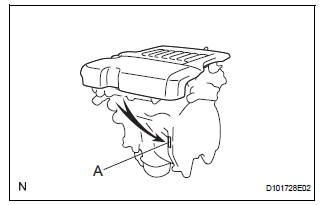

(1) Engine Serial Number

A:     2GR-FE

Engine Serial Number 2GR-FE

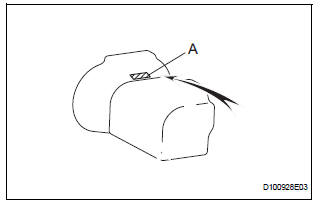

(2) Transaxle Serial Number

A:     U151E, U151F

U151E, U151F
