Toyota Sienna Service Manual: Ignition switch

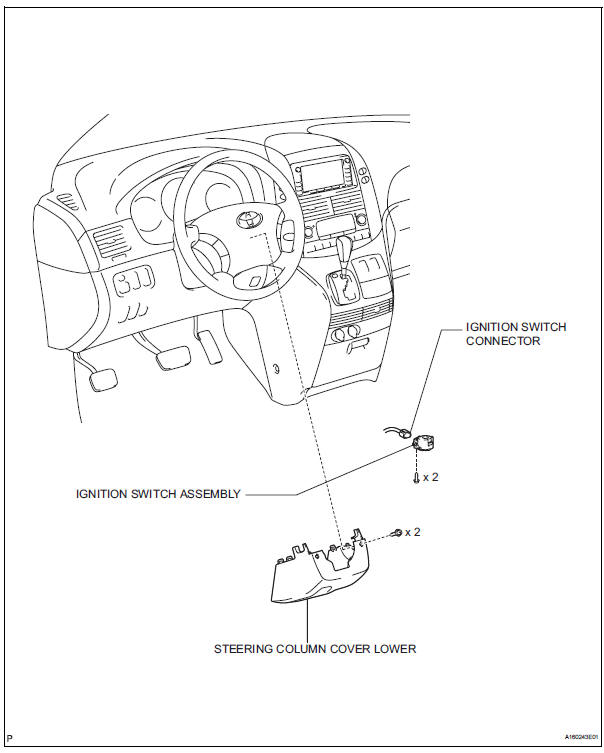

Components

Ignition switch

Starter relay
On-vehicle inspection 1. Inspect starter relay (a) Using an ohmmeter, measure the resistance between each terminal. Standard resistance If the result is not as specified, replace the starter ...

Removal
1. Disconnect cable from negative battery terminal 2. REMOVE STEERING COLUMN COVER LOWER (A) insert the key into the ignition key cylinder and release the steering lock. (B) turn the steeri ...
