Toyota Sienna Service Manual: Installation

1. INSTALL ACCESSORY METER ASSEMBLY

INSTALL ACCESSORY METER ASSEMBLY

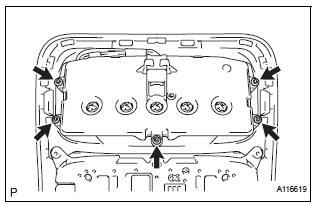

  1.  Using torx socket wrench (T10), install the accessory meter assembly with the 5 screws.
