Toyota Sienna Service Manual: On-vehicle inspection

Toyota Sienna Service Manual / Supplemental restraint system / Curtain shield airbag assembly / On-vehicle inspection

1. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY

Perform a diagnostic system check.

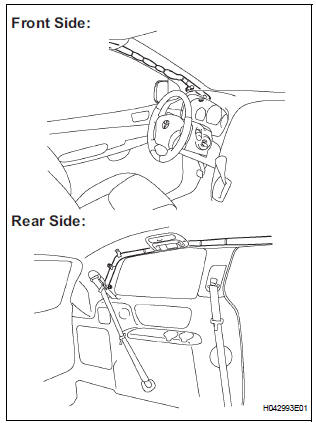

With the curtain shield airbag assembly installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the front pillar garnish RR window side garnish assembly No. 2 or roof headlining assembly with a new one: Cuts, minute cracks or marked discoloration on the front pillar garnish RR window side garnish assembly No. 2 or roof headlining assembly around the curtain shield airbag assembly.

2. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY

Perform a diagnostic system check.

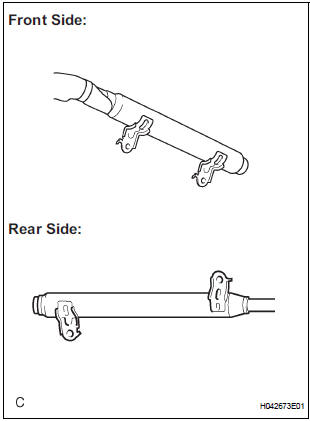

With the curtain shield airbag assembly removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag assembly with a new one:

Cuts, minute cracks or marked discoloration on the curtain shield airbag assembly.
Cracks or other damage to the connector.

CAUTION: Be sure to follow the correct removal and installation procedures.

Curtain shield airbag assembly

COMPONENTS ...

Removal

HINT: Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side. 1. PRECAUTION CAUTION: Be sure to read "PRECAUTION" thoroug ...
