Toyota Sienna Service Manual: On-vehicle inspection

1. Inspect intake air surge tank assembly

(A) inspection procedure when applying voltage between the terminals:

Inspect intake air surge tank assembly

(1) Disconnect the connector from the intake air control valve.

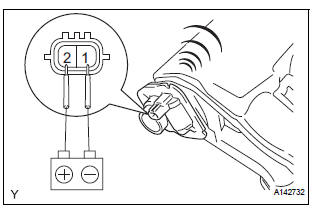

(2) Apply battery voltage between terminals 1 (-) and 2 (+) of the intake air control valve. Check that a clicking sound is heard from the intake air control valve.

If the result is not as specified, replace the intake air surge tank.

Intake air control valve
Components ...

Removal
1. Remove no. 2 Air cleaner inlet (see page em- 28) 2. Remove air cleaner cap sub-assembly (a) Disconnect the 3 vacuum hoses. (b) Loosen the bolt, disconnect the 2 connectors, and remove ...
