Toyota Sienna Service Manual: Intake air control valve

Toyota Sienna Service Manual / Engine / 2Gr-fe intake / Intake air control valve

Components

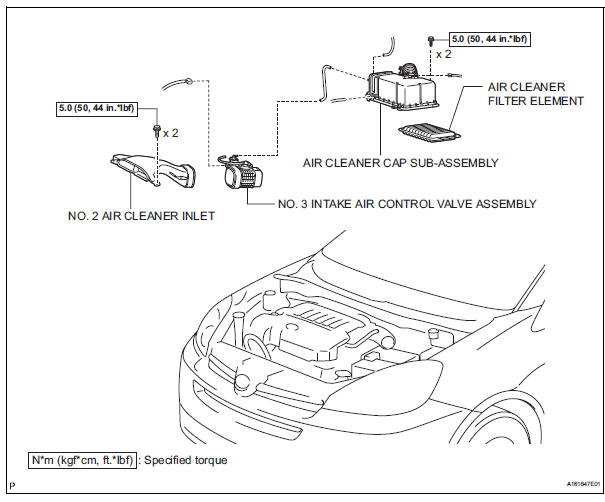

Intake air control valve

Intake system
Parts location System diagram ...

On-vehicle inspection
1. Inspect intake air surge tank assembly (A) inspection procedure when applying voltage between the terminals: (1) Disconnect the connector from the intake air control valve. (2) Apply bat ...
