Toyota Sienna Service Manual: Parts location

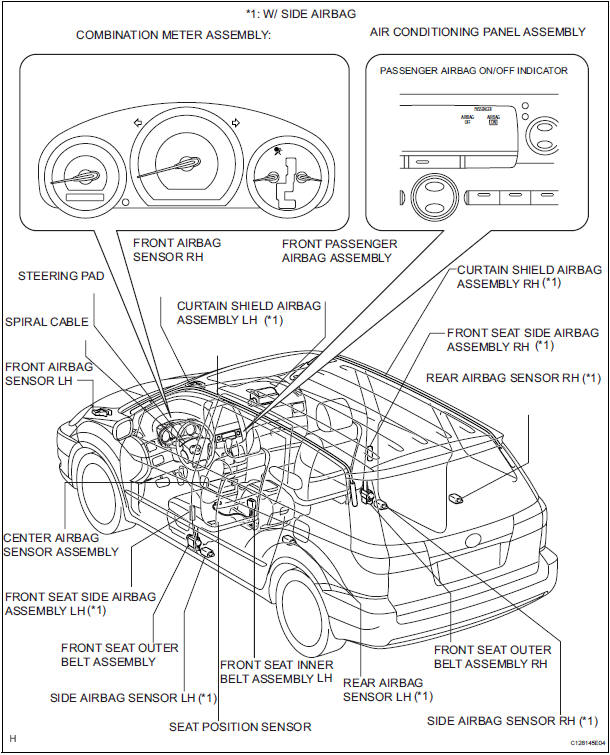

Parts location

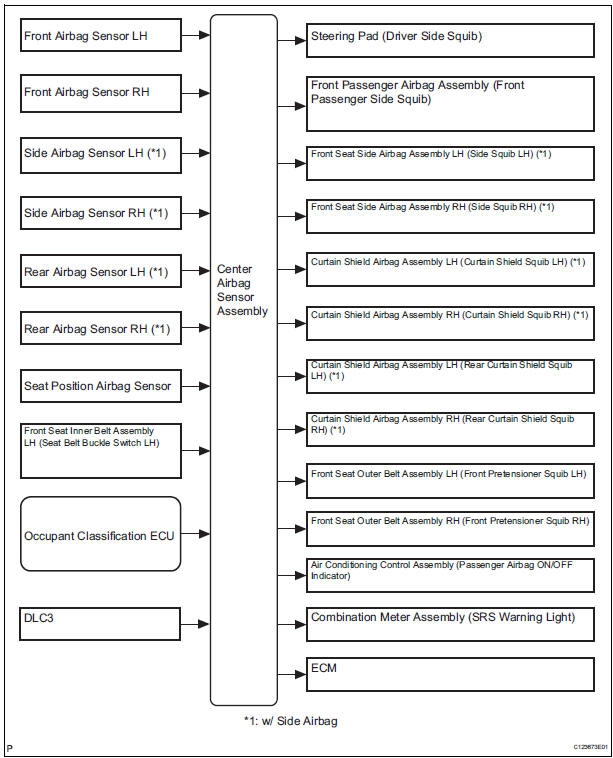

SYSTEM DIAGRAM

SYSTEM DIAGRAM

Precaution
CAUTION:  The vehicle is equipped with a Supplemental Restraint System (SRS). It consists of a driver airbag, front passenger airbag, front seat side airbag, curtain shield airbag, and ...

System description
1. GENERAL  In conjunction with impact absorbing structure for a frontal collision, the SRS (Supplemental Restraint System) driver airbag and front passenger airbag were designed to sup ...
