Perform zero point calibration of yaw rate and deceleration sensor (when using intelligent tester)

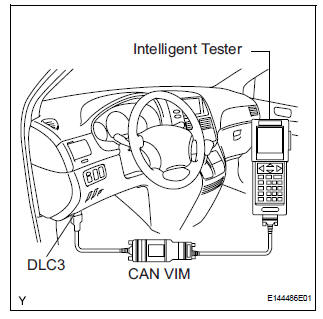

(a) Connect the intelligent tester to the DLC3.

(b) Turn the ignition switch to the ON position.

Perform zero point calibration of yaw rate and deceleration sensor (when using intelligent tester)

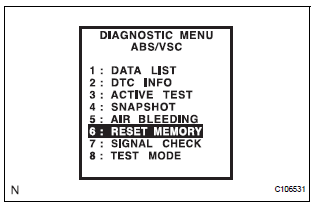

(c) Operate the intelligent tester to erase the codes (select "RESET MEMORY").

HINT: Refer to the intelligent tester operator's manual for further details.

(d) Using the intelligent tester, perform zero point calibration of the yaw rate and deceleration sensor.

Calibration
...

Perform zero point calibration of yaw rate and deceleration sensor (when using sst check wire)
NOTICE: While obtaining the zero point, do not vibrate the vehicle by tilting, moving or shaking it and keep it in a stationary condition. (Do not turn the ignition switch to the ON position ...
