INSPECTION

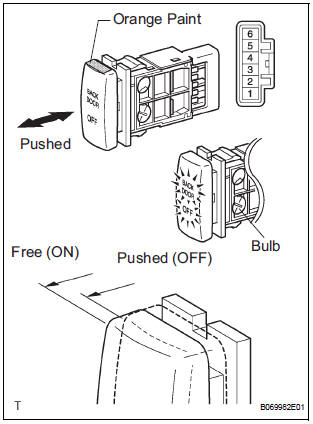

1. INSPECT POWER BACK DOOR MAIN SWITCH

INSPECT POWER BACK DOOR MAIN SWITCH

  1. Inspect the resistance of the main switch.

Resistance

Resistance

If the result is not as specified, replace the switch.

  1. Apply battery voltage and check the illuminates.

OK

Resistance

HINT: Whether the switch illuminates or not will not affect the function of the LH side.

If the result is not as specified, replace the bulb.
