Toyota Sienna Service Manual: Rear coil spring

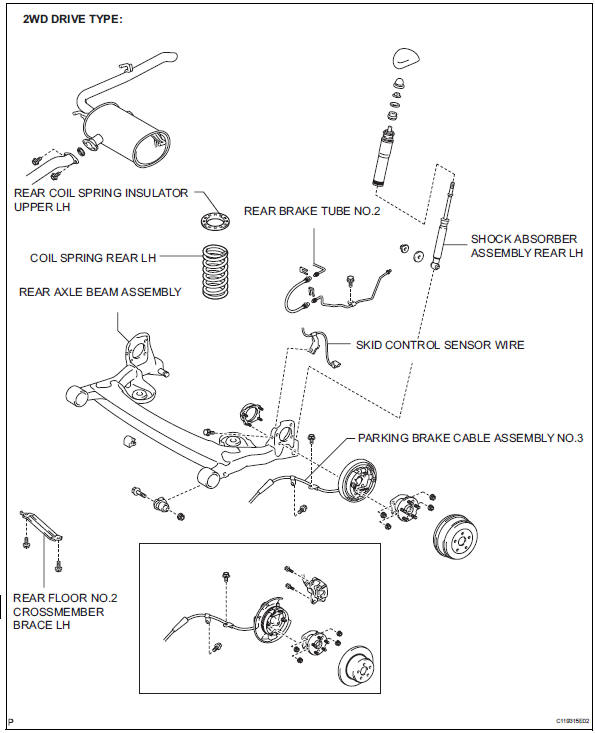

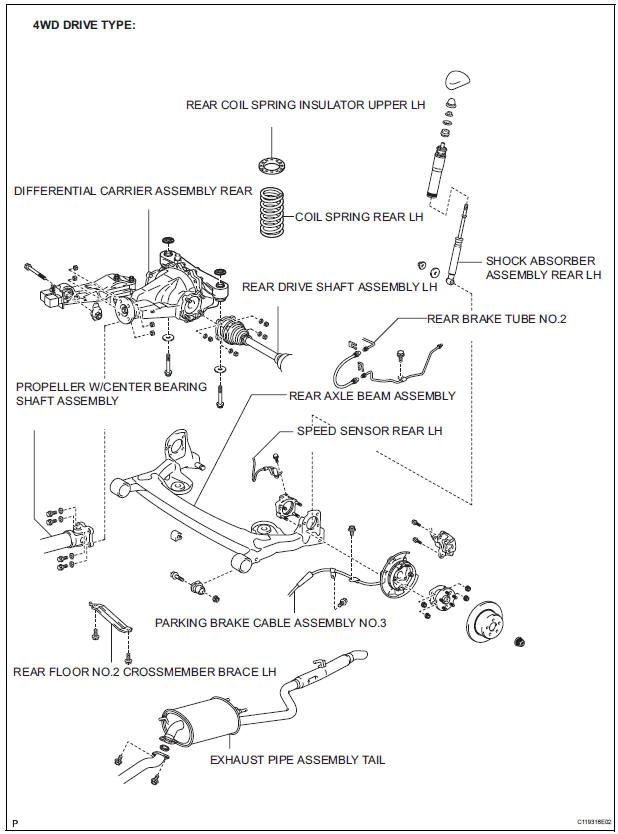

COMPONENTS

Rear coil spring

Rear coil spring

Rear coil spring

Installation
1. INSTALL FRONT STABILIZER BAR 2. INSTALL NO. 1 FRONT STABILIZER BAR BUSHING (a) Install the 2 front stabilizer bar bush No.1 to the stabilizer bar front. NOTICE: Install the bushings with t ...

Removal
1. REMOVE REAR WHEEL 2. REMOVE SKID CONTROL SENSOR WIRE (for 2WD) (a) Disconnect the skid control sensor connector. (b) Remove the bolt and disconnect the bracket from the rear axle beam assembl ...
