Toyota Sienna Service Manual: Rear differential carrier assembly

Toyota Sienna Service Manual / Differential / Rear differential carrier assembly

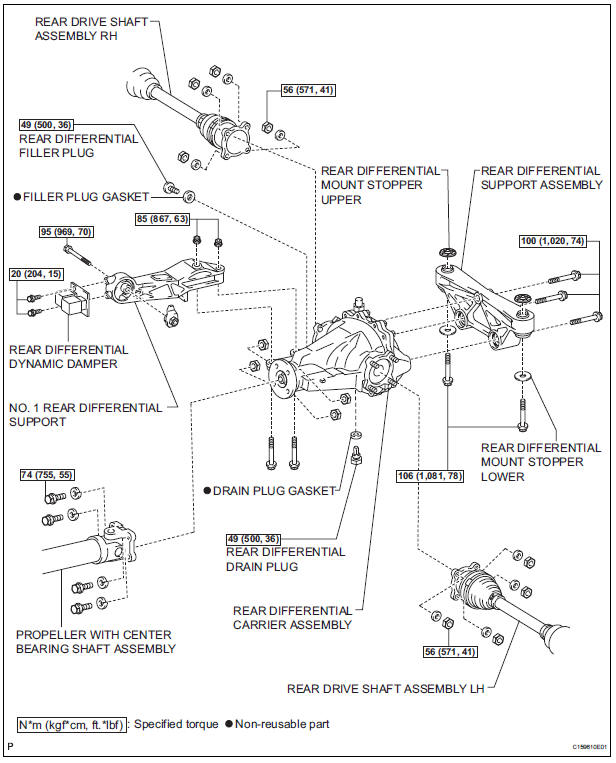

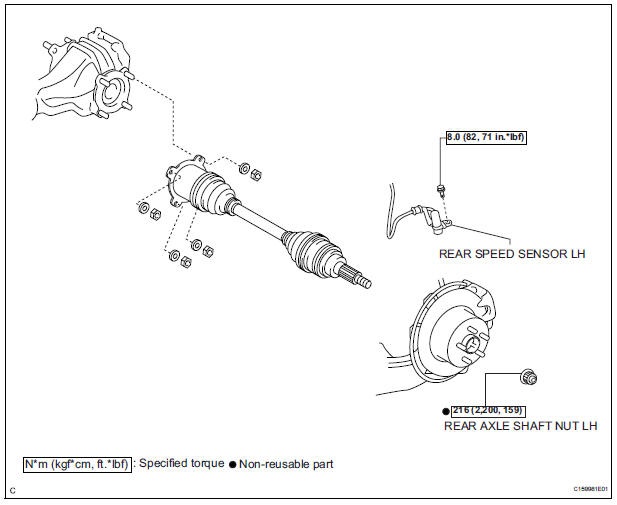

Components

Rear differential carrier assembly

Rear differential carrier assembly

Installation
1. INSTALL REAR DIFFERENTIAL DRIVE PINION BEARING SPACER (a) Install a new bearing spacer. 2. INSTALL REAR DRIVE PINION FRONT TAPERED ROLLER BEARING (a) Install the tapered roller bearing. 3. IN ...

Removal
1. Remove rear wheel 2. Remove exhaust pipe assembly Hint: (see page ex-8) 3. Remove propeller with center bearing shaft assembly Hint: (see page pr-3) 4. REMOVE REAR DIFFERENTIAL FILLER PLUG ...
