Toyota Sienna Service Manual: Rear seat inner belt assembly

Toyota Sienna Service Manual / Seat belt / Rear seat inner belt assembly

COMPONENTS

COMPONENTS

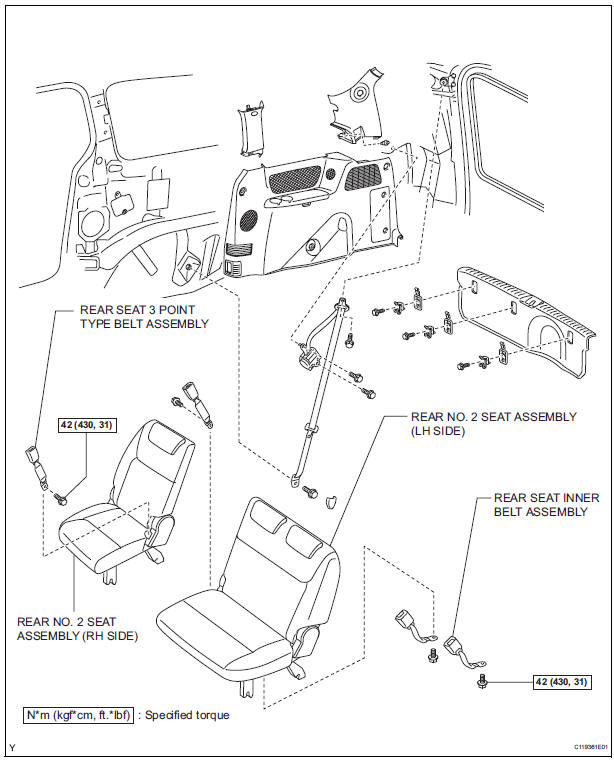

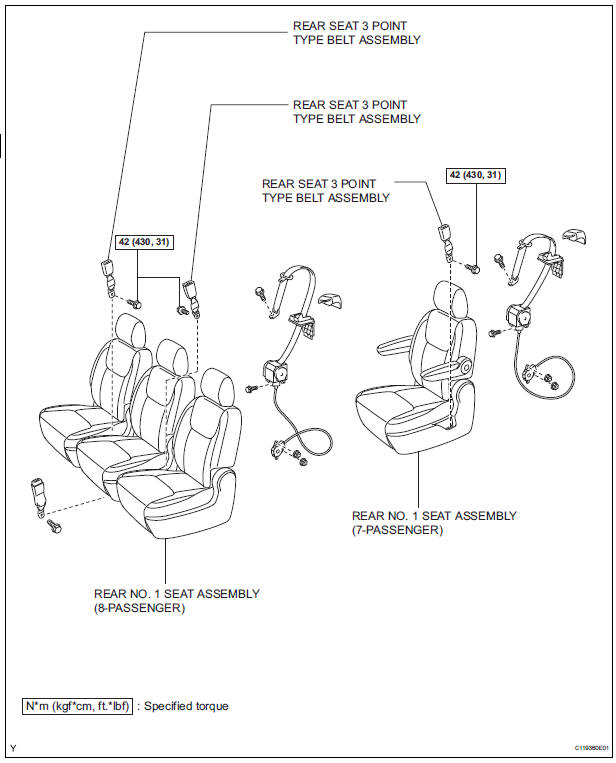

Components

Disposal
1. DISPOSE OF FRONT SEAT OUTER BELT ASSEMBLY (WHEN INSTALLED IN VEHICLE) NOTICE:  Never dispose of a front seat outer belt assembly with an deactivated pretensioner.  The seat belt ...

Removal
1. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY (for 8-Passenger) HINT: Refer to the instructions for disassembly of the rear No. 1 seat assembly (for center seat).  Remove the bolt and re ...
