Toyota Sienna Service Manual: Removal

NOTICE: Before removing the tire pressure warning ECU, read the registered transmitter IDs of all wheels and write them down to use for re-registration of transmitter IDs (See page TW-20).

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY

HINT: Refer to the instructions for REMOVAL of the instrument panel safety pad (See page IP-5).

3. REMOVE TIRE PRESSURE WARNING ECU

REMOVE TIRE PRESSURE WARNING ECU

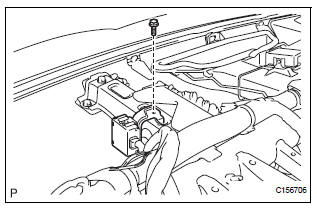

(a) Remove the screw.

REMOVE TIRE PRESSURE WARNING ECU

(b) Disconnect the connector and remove the tire pressure warning ECU.

Tire pressure warning ecu
COMPONENTS ...

Installation
1. INSTALL TIRE PRESSURE WARNING ECU (a) Connect the connector to the tire pressure warning ECU. (b) Install the tire pressure warning ECU with the screw. 2. INSTALL INSTRUMENT PANEL SAFET ...
