HINT: Remove the RH side by same procedures with LH side.
1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT SPEED SENSOR LH

(a) Disconnect the speed sensor connector.
(b) Remove the sensor harness and clamp from the body.

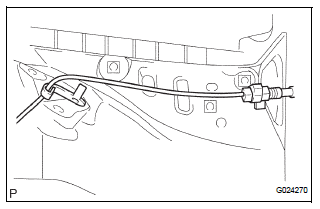

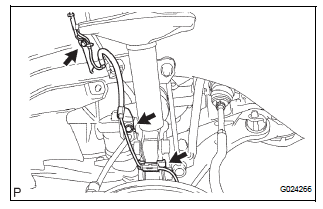

(c) Remove the 2 clamp bolts holding the sensor harness and clamp from the body and shock absorber.

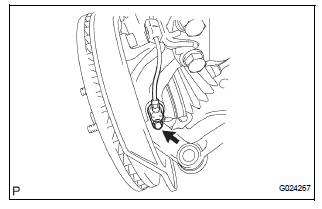

(d) Remove the bolt and speed sensor front LH.
NOTICE: Keep the tip of the speed sensor front LH.
Front speed sensor
InspectionCheck mode procedure
HINT:
Intelligent tester only:
Compared to normal mode, check mode is more sensitive to
malfunctions. Therefore, check mode can detect the
malfunctions that cannot be detected by normal mode.
NOTICE:
All the stored DTCs and freeze frame data are erased if:
the ECM is changed from nor ...
