Toyota Sienna Service Manual: Television display

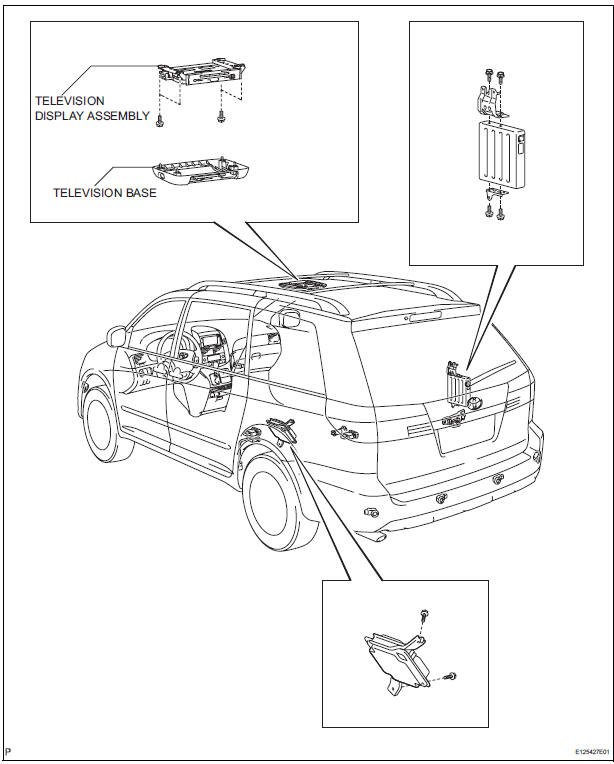

COMPONENTS

COMPONENTS

Removal

1. REMOVE TELEVISION BASE

REMOVE TELEVISION BASE

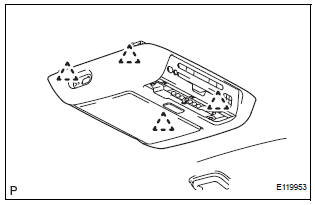

  1.  Release the 4 clips and remove the television base.

2. REMOVE TELEVISION DISPLAY ASSEMBLY

REMOVE TELEVISION DISPLAY ASSEMBLY

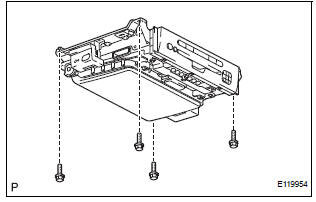

  1.  Disconnect the connector and remove the 4 bolts and the television display assembly.

Installation

1. INSTALL TELEVISION DISPLAY ASSEMBLY

INSTALL TELEVISION DISPLAY ASSEMBLY

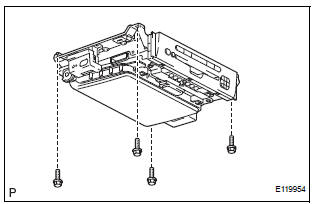

  1.  Install the television display assembly with the 4 bolts.
  2.  Connect the connector.

2. INSTALL TELEVISION BASE

INSTALL TELEVISION BASE

  1.  Engage the 4 clips to install the television base.
