Toyota Sienna Service Manual: Radio antenna cord

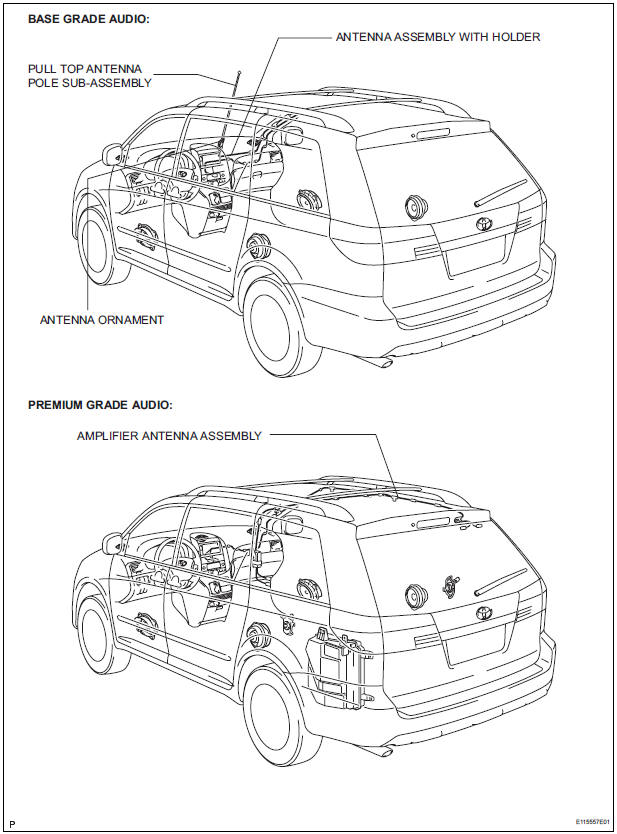

COMPONENTS

COMPONENTS

COMPONENTS

Television display
COMPONENTS Removal 1. REMOVE TELEVISION BASE  Release the 4 clips and remove the television base. 2. REMOVE TELEVISION DISPLAY ASSEMBLY  Disconnect the connector and r ...

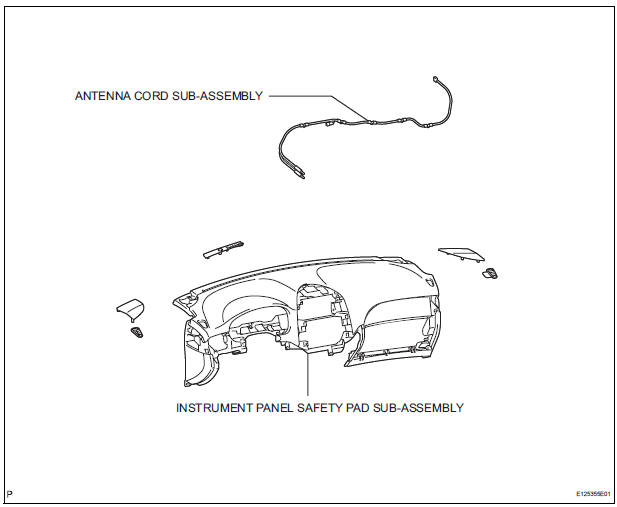

Removal
1. REMOVE INSTRUMENT PANEL SAFETY PAD SUBASSEMBLY 2. REMOVE ANTENNA CORD SUB-ASSEMBLY  Replace the 5 clamps and remove the antenna cord sub-assembly. 3. REMOVE PULL TOP ANTENNA POLE S ...

Other materials:

Mute Signal Circuit between Radio Receiver and Stereo Component Amplifier
DESCRIPTION This circuit sends a signal to the stereo component amplifier to mute noise. Because of that, the noise produced by changing the sound source ceases. If there is an open in the circuit, noise can be heard from the speakers when changing the sound source. If there is a short i ...

Eject Error/ Elevator Error/ Clamp Error
DTC 44-45 Eject Error DTC 44-51 Elevator Error DTC 44-52 Clamp Error DESCRIPTION DTC No. DTC Detecting Condition Trouble Area 44-45 Disc cannot be ejected. Television display assembly 44-51 Mechanical error occurs during elevator operation. ...

Disassembly
1. REMOVE CENTER CLUSTER MODULE KNOB NO.1 (for Manual Air Conditioning System) (a) Remove the center cluster module knob No. 1. 2. REMOVE CENTER CLUSTER MODULE KNOB NO.2 (for Manual Air Conditioning System) (a) Release the 2 claws fittings and remove the center cluster module knob No ...
