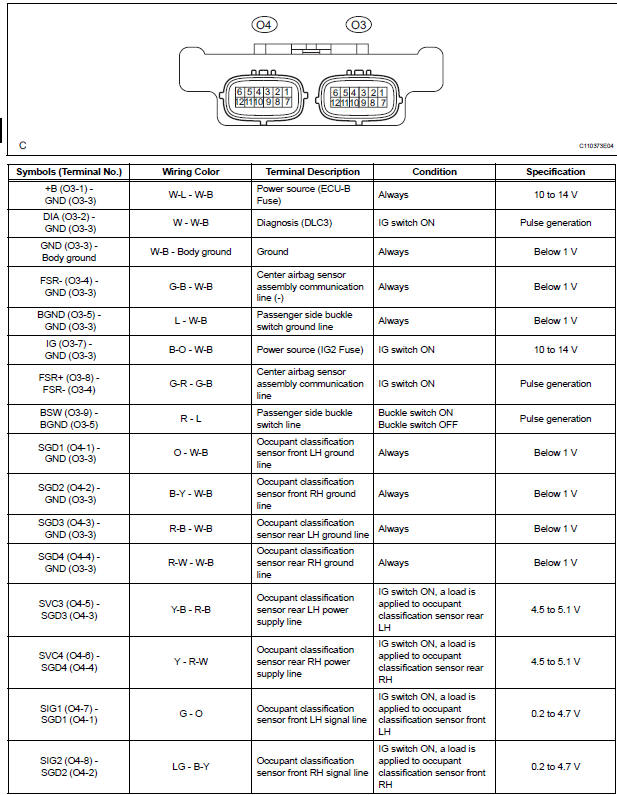

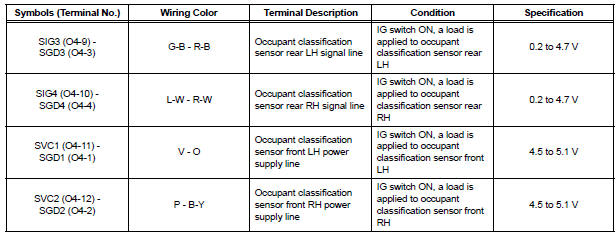

Toyota Sienna Service Manual: Terminals of ECU

1. OCCUPANT CLASSIFICATION ECU

OCCUPANT CLASSIFICATION ECU

OCCUPANT CLASSIFICATION ECU

Initialization
1. ZERO POINT CALIBRATION NOTICE: Make sure that the front passenger seat is not occupied before performing the operation. HINT: Perform the zero point calibration and sensitivity check if any o ...

Diagnosis system
1. CHECK DLC3  The ECU uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and meets the ISO 15765-4 format. NOTICE: *: Before mea ...
