Toyota Sienna Service Manual: Terminals of ECU

Toyota Sienna Service Manual / Park assist / monitoring / Clearance sonar system / Terminals of ECU

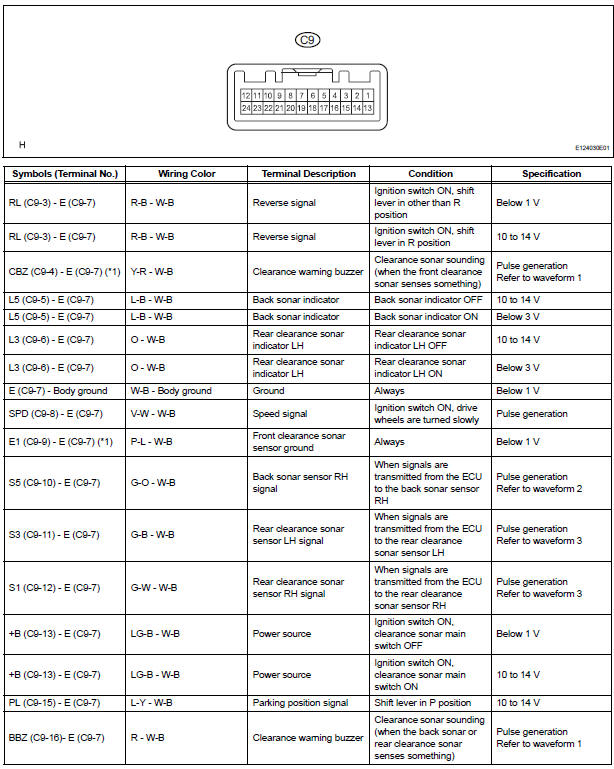

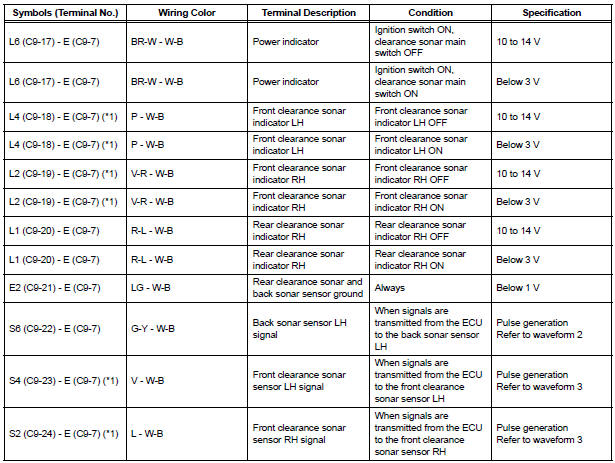

1. CLEARANCE WARNING ECU

CLEARANCE WARNING ECU

*1: with Front Clearance Sonar

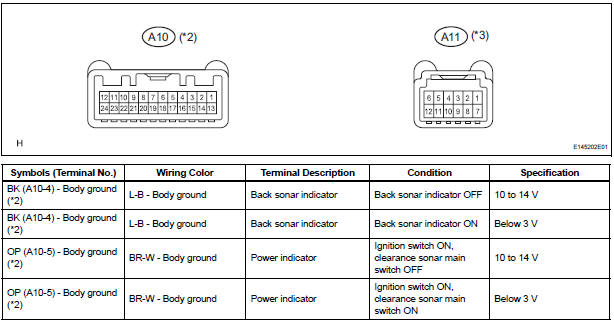

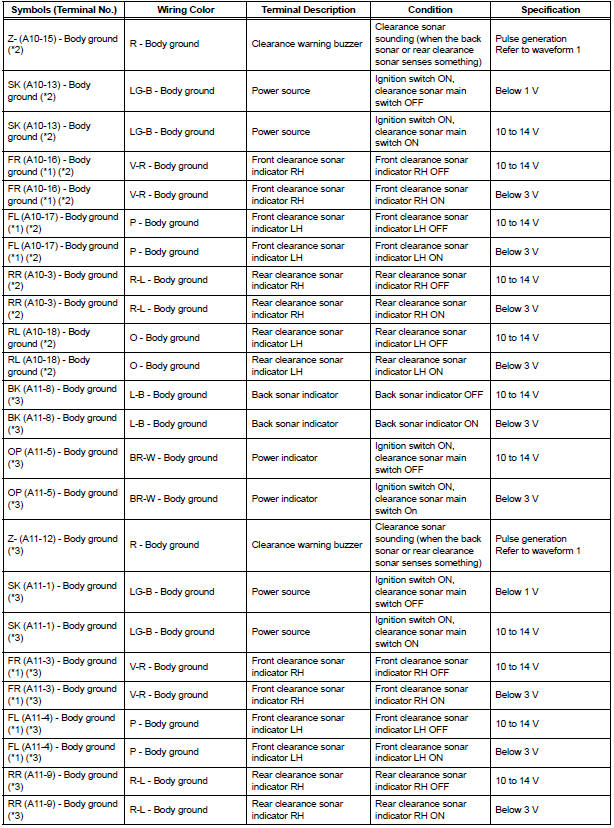

2. AIR CONDITIONER AMPLIFIER ASSEMBLY

AIR CONDITIONER AMPLIFIER ASSEMBLY

*1: with Front Clearance Sonar
*2: Manual A/C
*3: Auto A/C

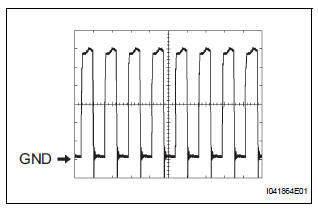

Reference: waveform 1

AIR CONDITIONER AMPLIFIER ASSEMBLY

HINT:

Terminal: CBZ - E, BBZ - E, Z- - Body ground
Gauge set: 2 V/DIV., 500 μs/DIV.
Condition: When the clearance sonar is detecting an object.

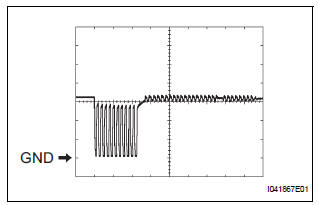

Reference: waveform 2

AIR CONDITIONER AMPLIFIER ASSEMBLY

HINT:

Terminal: S5 - E, S6 - E
Gauge set: 2 V/DIV., 100 μs/DIV.
Condition: When the back sonar is not detecting an object

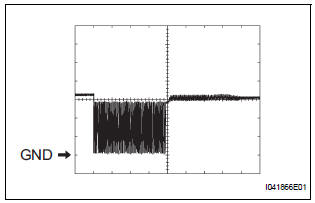

Reference: waveform 3

AIR CONDITIONER AMPLIFIER ASSEMBLY

HINT:

Terminal: S3 - E, S1 - E, S4 - E, S2 - E
Gauge set: 2 V/DIV., 100 μs/DIV.
Condition: When the clearance sonar is not detecting an object.
