Toyota Sienna Service Manual: Adjustment
1. ADJUST BUZZER VOLUME

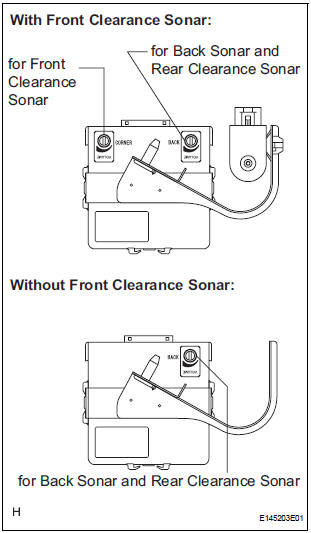

- Turn the knob on the clearance warning ECU to adjust the volume.
- Park / Neutral Position Switch Circuit
- Speed Signal Circuit
- Back Sonar Sensor LH Circuit
- Back Sonar Sensor RH Circuit
- Front Clearance Sonar Sensor LH Circuit
- Front Clearance Sonar Sensor RH Circuit
- Rear Clearance Sonar Sensor LH Circuit
- Rear Clearance Sonar Sensor RH Circuit
- No. 1 Clearance Warning Buzzer Circuit
- Clearance Warning ECU Power Source Circuit
- No. 2 Clearance Warning Buzzer Circuit
- Indicator Circuit
Terminals of ECU
1. CLEARANCE WARNING ECU
*1: with Front Clearance Sonar
2. AIR CONDITIONER AMPLIFIER ASSEMBLY
*1: with Front Clearance Sonar
*2: Manual A/C
*3: Auto A/C
Reference: ...
Park / Neutral Position Switch Circuit
DESCRIPTION
The clearance warning ECU receives the reverse or park position signal from
the park / neutral position
switch.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 INSPECT CLEARANCE WARNING E ...
