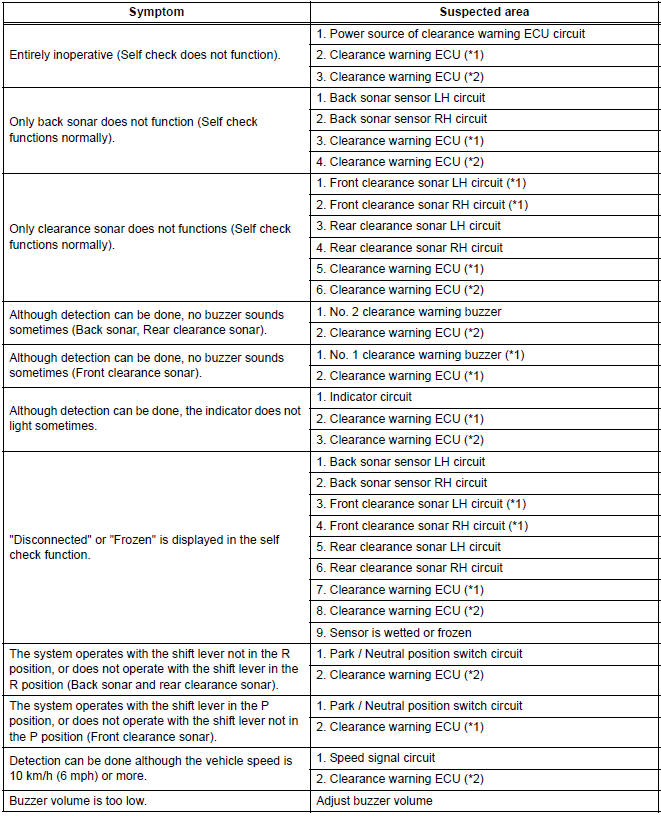

Toyota Sienna Service Manual: Problem symptoms table
HINT:
- Before performing verification listed in the table below, check the fuse and relay.
- Check the circuits for each problem symptom in the order given in the table below, and proceed to the relevant page.
CLEARANCE SONAR SYSTEM:
*1: with Front Clearance Sonar
*2: without Front Clearance Sonar
Operation check
1. DETECTION RANGE MEASUREMENT AND INDICATOR CHECK
Turn the IG switch ON.
Move the shift lever to the R position (when the back
sonar and rear clearance sonar is checked).
...
Terminals of ECU
1. CLEARANCE WARNING ECU
*1: with Front Clearance Sonar
2. AIR CONDITIONER AMPLIFIER ASSEMBLY
*1: with Front Clearance Sonar
*2: Manual A/C
*3: Auto A/C
Reference: ...
