Toyota Sienna 2010-2025 Owners Manual: Towing with a wheel-lift type truck
- From the front (2WD models)
Release the parking brake.

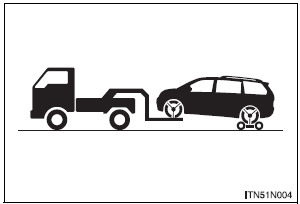

- From the front (AWD models)
Use a towing dolly under the rear wheels.

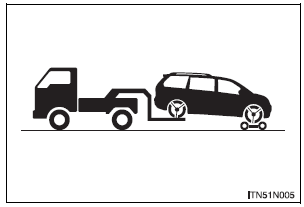

- From the rear
Use a towing dolly under the front wheels.
Situations when it is necessary to contact dealers before towing
The following may indicate a problem with your transaxle. Contact
your Toyota dealer or commercial towing service before towing.
The engine is running but the vehicle does not move.
The vehicle ...
Using a flatbed truck
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be damaged.
WARNINGObserve ...
