Toyota Sienna Service Manual: Transmission control cable assembly

Toyota Sienna Service Manual / U151e automatic transaxle / Transmission control cable assembly

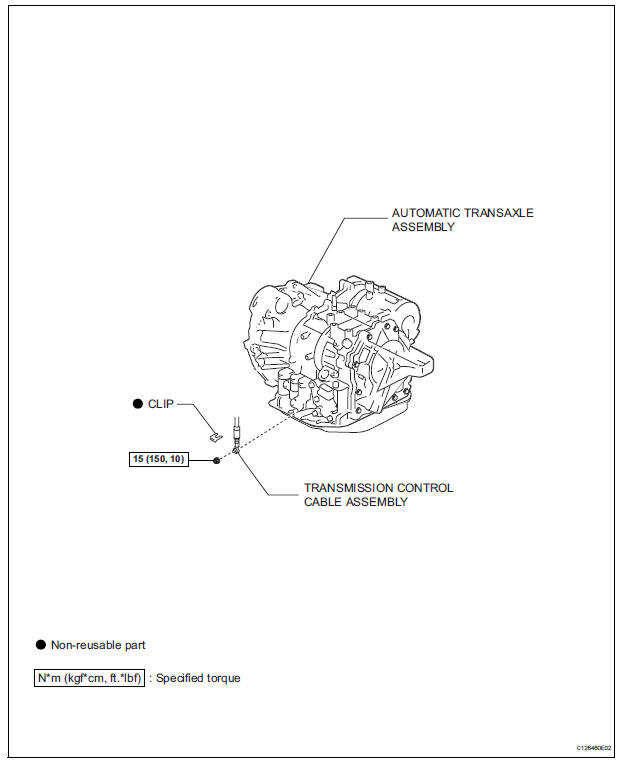

COMPONENTS

Transmission control cable assembly

Removal
1. Disconnect battery negative terminal 2. Remove instrument cluster finish panel sub-assembly center Hint: (see page ip-9) 3. Remove transmission control cable assembly (a) Remove the nut f ...
