Toyota Sienna Service Manual: Transmission Wire

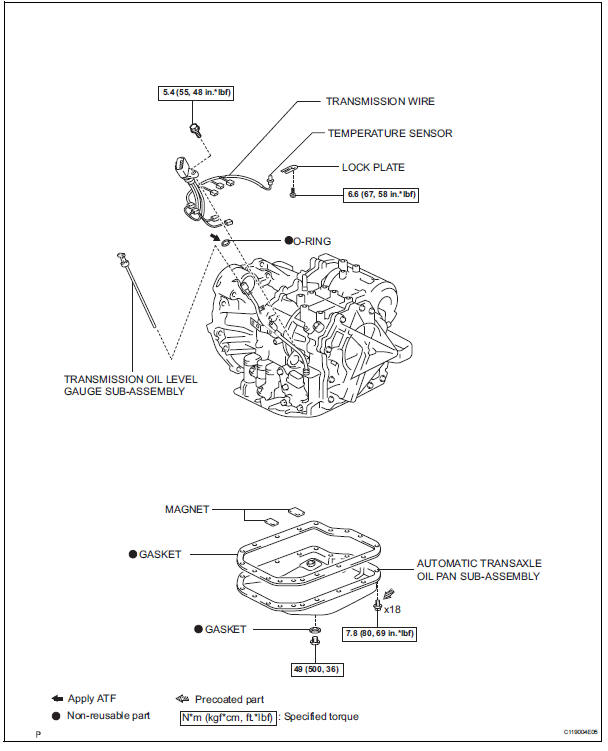

COMPONENTS

Transmission Wire

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE ENGINE UNDER COVER NO.1 3. DRAIN AUTOMATIC TRANSAXLE FLUID (a) Remove the drain plug and gasket, and drain the ATF. (b) Install a n ...
