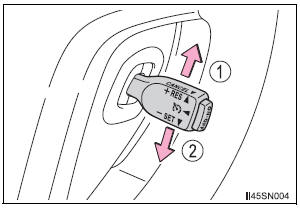

To change the set speed, operate the lever until the desired set speed is obtained.
Fine adjustment: Momentarily move the lever in the desired direction.
Large adjustment: Hold the lever in the desired direction.
The set speed will be increased or decreased as follows: Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is operated.
Large adjustment: The set speed can be increased or decreased continually until the lever is released.
Network gateway ECU
COMPONENTS
REMOVAL
1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE COWL SIDE TRIM BOARD LH
3. REMOVE INSTRUMENT PANEL FINISH PANEL
LOWER LH (See page IP-6)
4. REMOVE INSTRUMENT PANEL SAFETY PAD
INSERT NO. 1 (See page IP-6)
5. REMOVE CLEARANCE WARNING ECU ASSEMBLY
(See page PM-15)
6. REMOVE ...
How to proceed with
troubleshooting
HINT:
Troubleshoot in accordance with the procedures on the
following pages.
1 VEHICLE BROUGHT TO WORKSHOP
2 CUSTOMER PROBLEM ANALYSIS CHECK AND SYMPTOM CHECK
3 INSPECT COMMUNICATION FUNCTION OF LARGE-SCALE MULTIPLEX
COMMUNICATION SYSTEM (BEAN)
Use the intelligent tester to check for norma ...
Problem symptoms table
POWER WINDOW CONTROL SYSTEM (W/ JAM PROTECTION)
Symptom
Suspected Area
AUTO UP/DOWN function does not operate
Power window regulator motor assembly (Driver side)
Wire harness
Power window regulator master switch assembly
Remote ...
