Toyota Sienna Service Manual: Back Door Courtesy Switch Circuit
DESCRIPTION
The fold seat control ECU receives signals from the back door courtesy switch and detects the state of the back door (open/close). If the ECU does not detect that the back door is open, the seat stowing and return functions are not available.

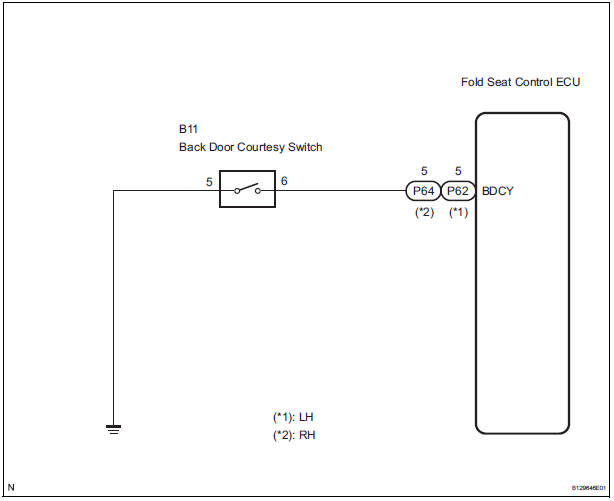

WIRING DIAGRAM
INSPECTION PROCEDURE

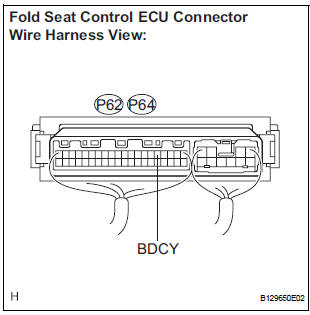

1 INSPECT FOLD SEAT CONTROL ECU
- Remove the fold seat control ECU with connectors still connected.
- Measure the voltage according to the value(s) in the table below.

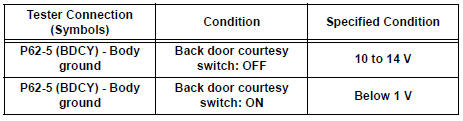

Standard voltage LH side

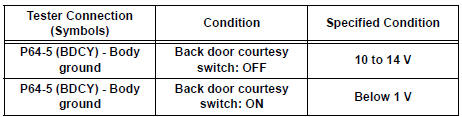

RH side

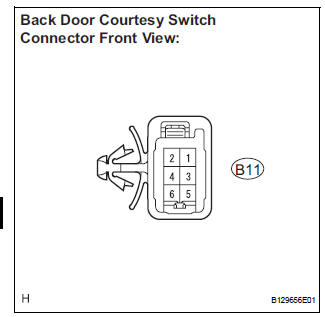

2 INSPECT BACK DOOR COURTESY SWITCH
- Disconnect the connector from the back door courtesy switch.
- Measure the resistance according to the value(s) in the table below.

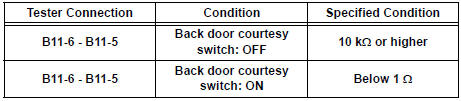

Standard resistance

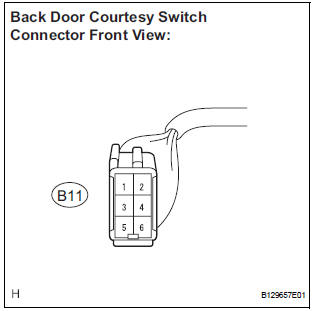

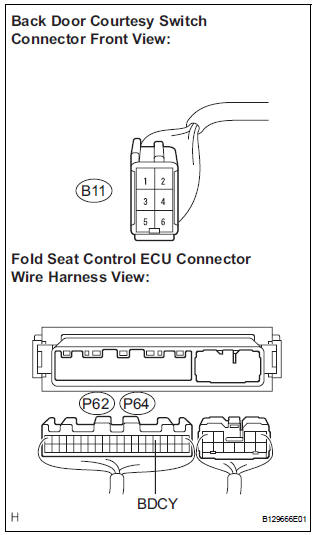

3 CHECK HARNESS AND CONNECTOR (FOLD SEAT CONTROL ECU - BACK DOOR COURTESY SWITCH)
- Disconnect the connectors from the fold seat control ECU.

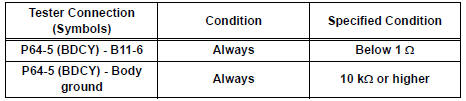

- Measure the resistance according to the value(s) in the table below.

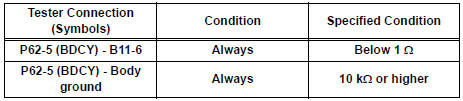

Standard resistance LH side
RH side
4 CHECK HARNESS AND CONNECTOR (BACK DOOR COURTESY SWITCH - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard resistance
REPLACE FOLD SEAT CONTROL ECU
