Toyota Sienna Service Manual: On-vehicle inspection
1. CHECK POWER REAR NO. 2 SEAT with STOWING FUNCTION
- Check the basic functions.

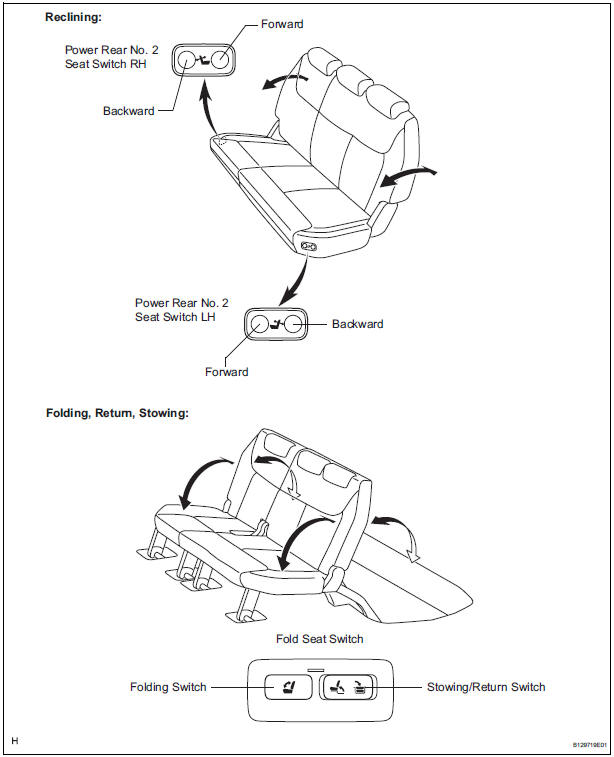

- Operate the fold seat switch and power rear No.2 seat switch and check to make sure each seat function works:
- Folding-down operation
- Stowing operation
- Return operation
- Reclining operation
- Park / Neutral Position Switch Circuit
- Back Door Courtesy Switch Circuit
- Indicator Circuit
- Power Source Circuit
- Fold Seat Switch Circuit
- Folding Motor Circuit
- Reclining Motor Circuit
- Release Actuator Circuit
- Lock Switch Circuit
- Rear Power Seat Switch Circuit
- Fold Lock Switch Circuit
Diagnosis system
1. CHECK DLC3
The vehicle uses ISO 15765-4 communication
protocol.
The terminal arrangement of the DLC3 complies
with SAE 1962 and matched the ISO 15765-4
format.
If the resul ...
Park / Neutral Position Switch Circuit
DESCRIPTION
The fold seat control ECU receives signals from the Park/Neutral position
switch and controls the seat
stowing and return operations. If the shift lever is in any position other than
...
