Toyota Sienna Service Manual: Brake pedal

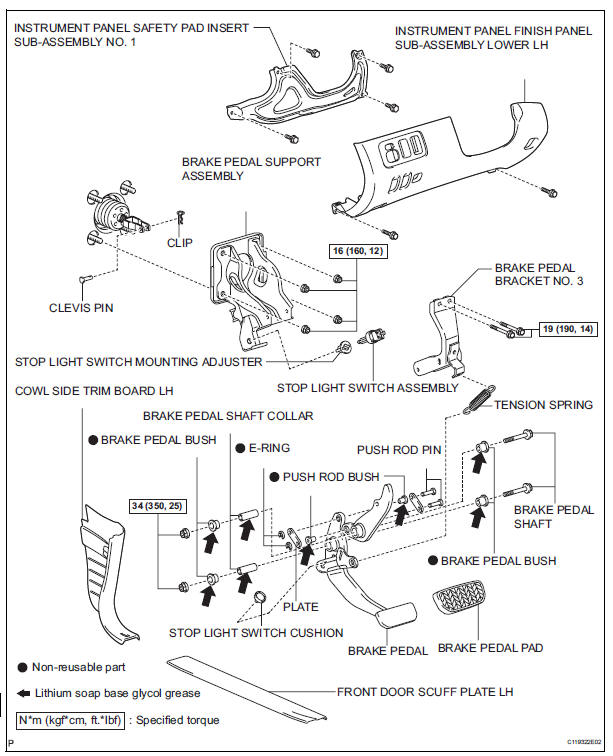

Components

Brake pedal

Brake fluid
Bleeding HINT: If any work is performed on the brake system or if air in the brake lines is suspected, bleed the air out of the brake system. NOTICE: Wash the brake fluid off immediately if it a ...

On-vehicle inspection
1. INSPECT BRAKE PEDAL HEIGHT (a) Check the brake pedal height. Pedal height from dash panel: 150.3 to 160.3 mm (5.917 to 6.311 in.) NOTICE: Do not adjust the pedal height. Doing so by chang ...
