Toyota Sienna Service Manual: Diagnosis system

1. CHECK DLC3

CHECK DLC3

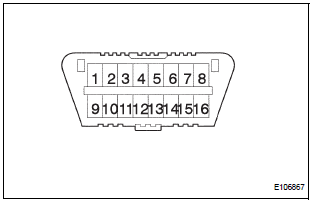

  1.  The vehicle uses ISO 15765-4 communication protocol.

    The terminal arrangement of the DLC3 complies with SAE 1962 and matched the ISO 15765-4 format.

CHECK DLC3

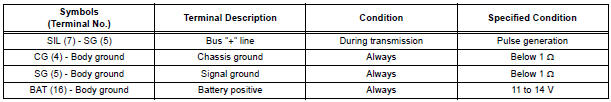

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

Terminals of ECU
1. FOLD SEAT CONTROL ECU LH Disconnect the fold seat control ECU connectors. Measure the voltage and resistance of the wire harness side connectors. If the result is not as specifie ...

On-vehicle inspection
1. CHECK POWER REAR NO. 2 SEAT with STOWING FUNCTION  Check the basic functions.  Operate the fold seat switch and power rear No.2 seat switch and check to make sure each seat ...

Other materials:

Front floor footrest
COMPONENTS Removal 1. REMOVE FRONT FLOOR FOOTREST Using a screwdriver, disengage the 2 clips and remove the footrest. HINT: Tape the screwdriver tip before use. Disengage the clips and then remove the 2 clips from the footrest. INSTALLATION 1. INSTALL FRONT FLOOR FOOTREST ...

Situations when it is necessary to contact dealers before towing
The following may indicate a problem with your transaxle. Contact your Toyota dealer or commercial towing service before towing. The engine is running but the vehicle does not move. The vehicle makes an abnormal sound Towing with a sling-type truck Do not tow with a sling-type truck to p ...

How to proceed with troubleshooting
The intelligent tester can be used at steps 3, 7, 10, and 13. 1 VEHICLE BROUGHT TO WORKSHOP 2 CUSTOMER PROBLEM ANALYSIS (a) Interview the customer to confirm the trouble. 3 DTC CHECK/CLEAR AND FREEZE FRAME DATA 4 PROBLEM SYMPTOM CONFIRMATION 5 PROBLEM SYMPTOM SIMULATION 6 SYMPTOM SI ...
