Toyota Sienna Service Manual: Diagnostic trouble code chart

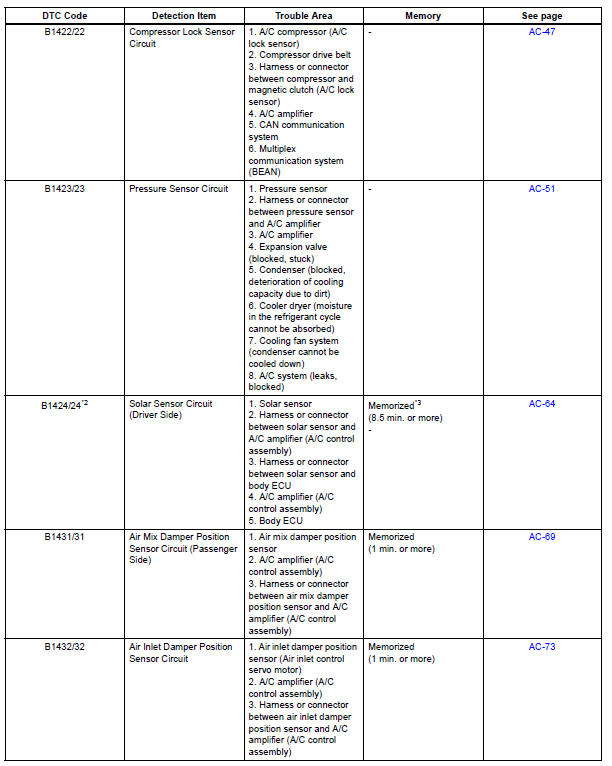

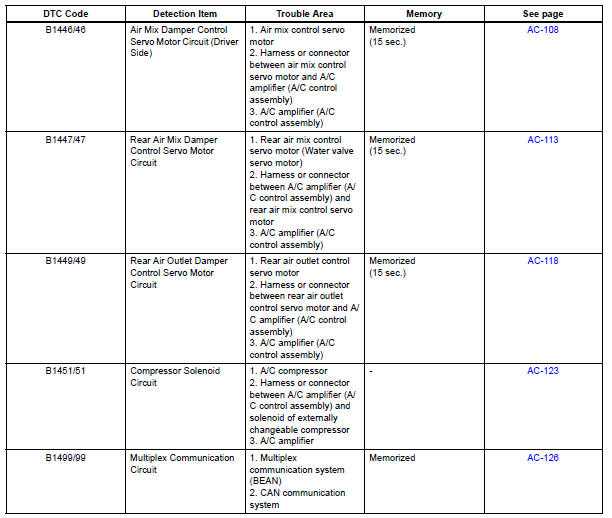

If a trouble code is displayed during the DTCs check (sensor check), check the circuit listed for the code in the table below (Proceed to the page given for that circuit).
AIR CONDITIONING SYSTEM
HINT:
- *1: If the cabin temperature is approximately -18.6°C (- 3.7°F) or lower, DTC B1411/11 may be output even though the system is normal.
- *2: If the check is being performed in a dark place, DTC B1421/21 or B1424/24 (solar sensor circuit abnormal) could be displayed.
- *3: Short in the circuit.
- *4: Open in the circuit.
Data list / active test
1. DATA LIST
HINT:
Using the intelligent tester to read the Data List allows
the values or states of switches, sensors, actuators and
other items to be read without removing any parts. This
non-i ...
Actuator check
1. ACTUATOR CHECK
(a) After entering the DTC check mode (Sensor Check
Mode), press the R/F switch.
(b) As each damper, motor and relay automatically
operate actuator check at 1-second interval ...
