Toyota Sienna Service Manual: Differential case

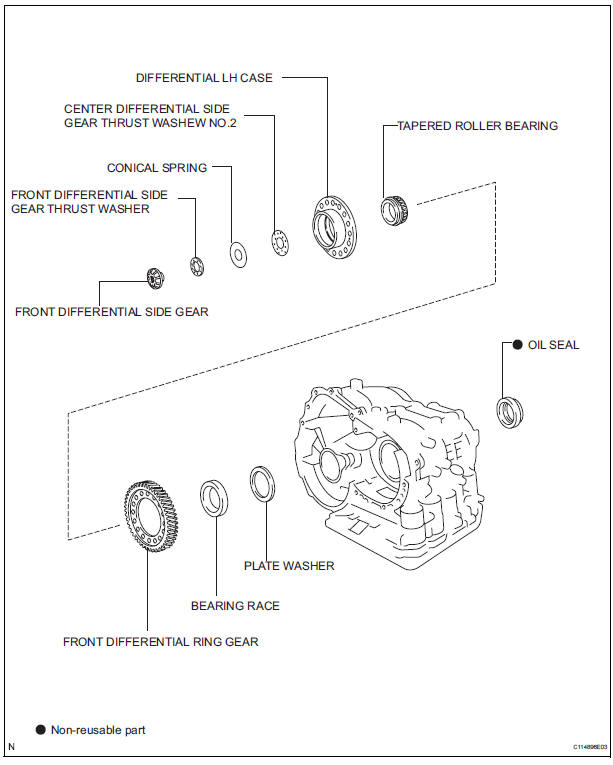

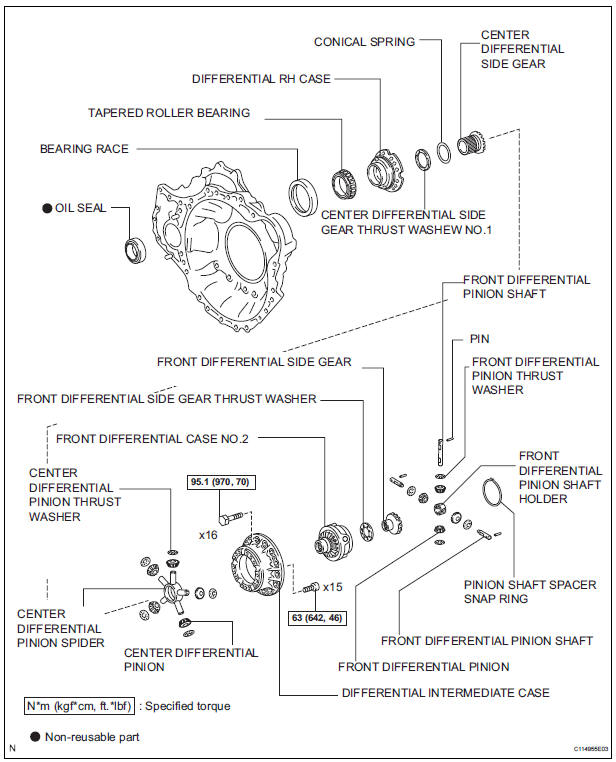

COMPONENTS

Differential case

Differential case

Disassembly
1. REMOVE FRONT DIFFERENTIAL RING GEAR (a) Place the match-marks on the ring gear and differential case. (b) Remove the 16 bolts. (c) Using a plastic hammer, tap ring gear to remove it ...
