Toyota Sienna Service Manual: Engine oil cooler

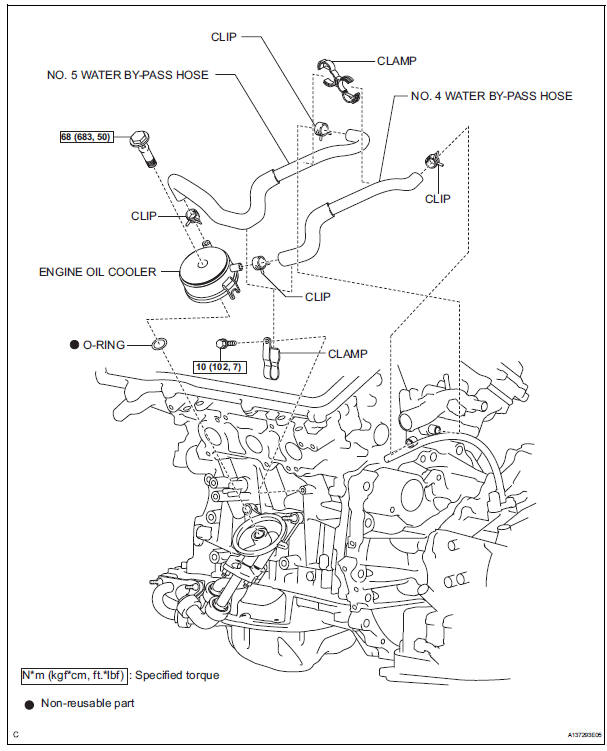

Components

Installation
1. INSTALL TIMING CHAIN CASE OIL SEAL (a) Using SST, tap in a new oil seal until its surface is flush with the timing chain case edge. SST 09223-22010, 09506-35010 NOTICE: Keep the ...

Removal
1. REMOVE NO. 1 ENGINE UNDER COVER (See page EM-26) 2. REMOVE EXHAUST PIPE ASSEMBLY for 2WD:(See page EX-2) for 4WD:(See page EX-8) 3. DRAIN ENGINE COOLANT (See page CO-6) 4. DRAIN ENGINE OIL (S ...

Other materials:

Removal
1. REMOVE FRONT WHEELS 2. REMOVE FRONT STABILIZER LINK ASSEMBLY LH (a) Remove the 2 nuts and front stabilizer link assembly LH. HINT: If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud. 3. REMOVE FRONT STABILIZER LINK ASSEMBLY RH HINT: Remove the ...

Installation
1. INSTALL BRAKE MASTER CYLINDER (a) Install the brake master cylinder with the 2 nuts. Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf) (b) Slide the clip and connect the brake master cylinder reservoir hose. (c) Using SST, connect the 2 brake tube to the brake master cylinder. SST 09023-001 ...

Absence of Registration Unit/ No Response for Connection Check/ Last Mode Error/ No Response Against ON / OFF Command/ Mode Status Error/ Slave Reset
DESCRIPTION HINT:  *1: Even if no fault is present, this trouble code may be stored depending on the battery condition or engine start voltage.  *2: If the power connector is disconnected after the engine starts, this code is stored after 180 seconds.  *3: If the ...
