Toyota Sienna Service Manual: Engine unit

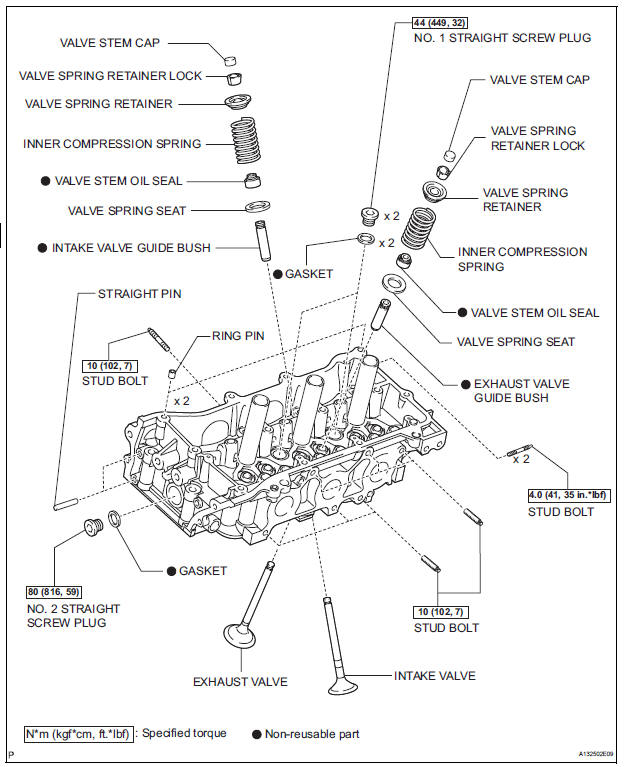

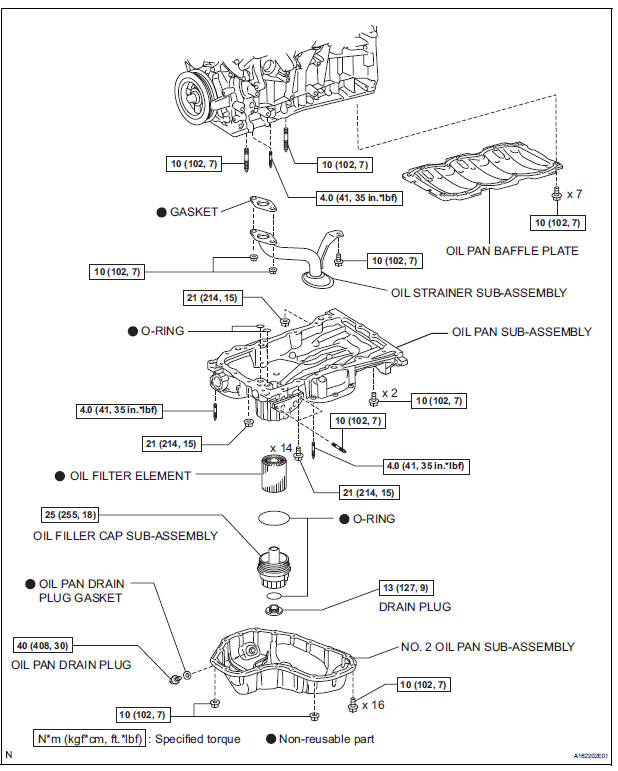

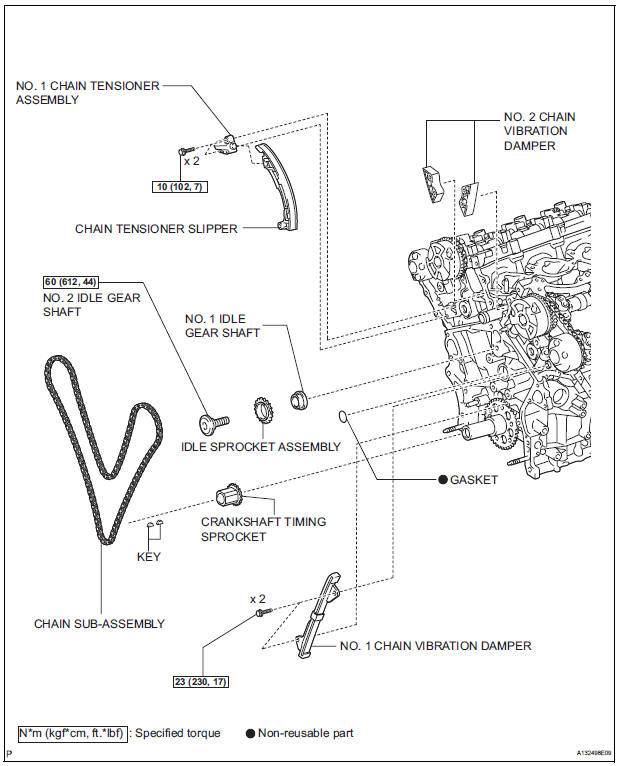

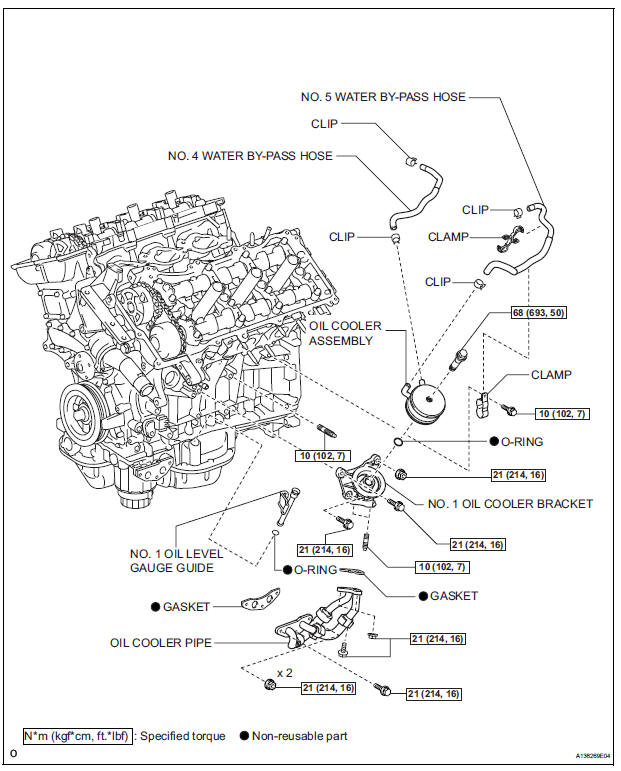

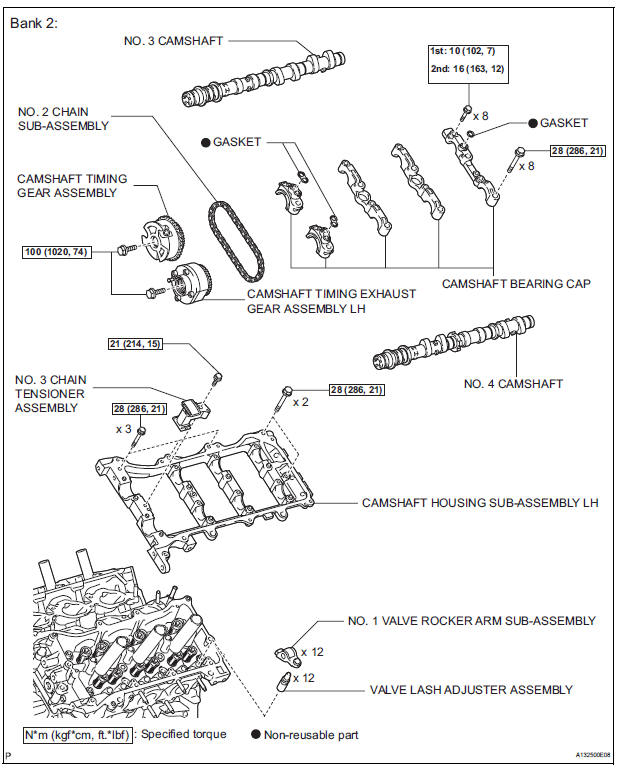

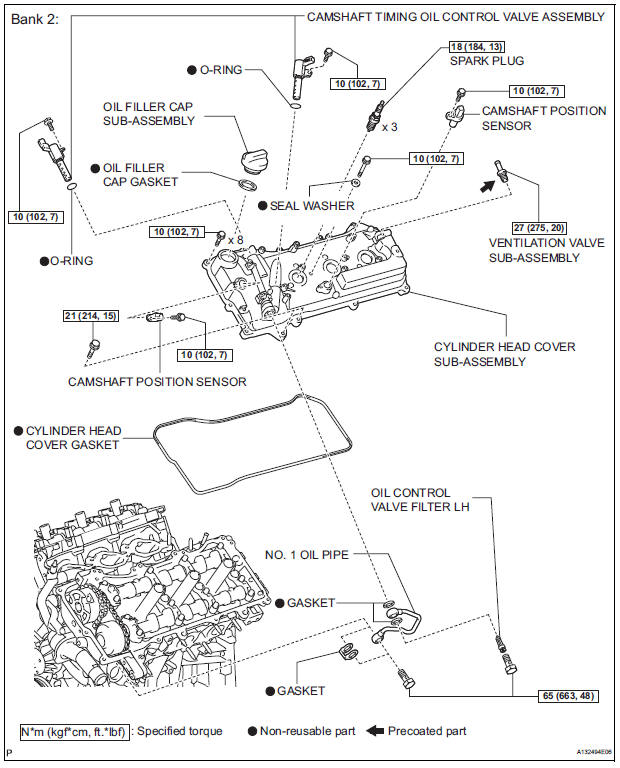

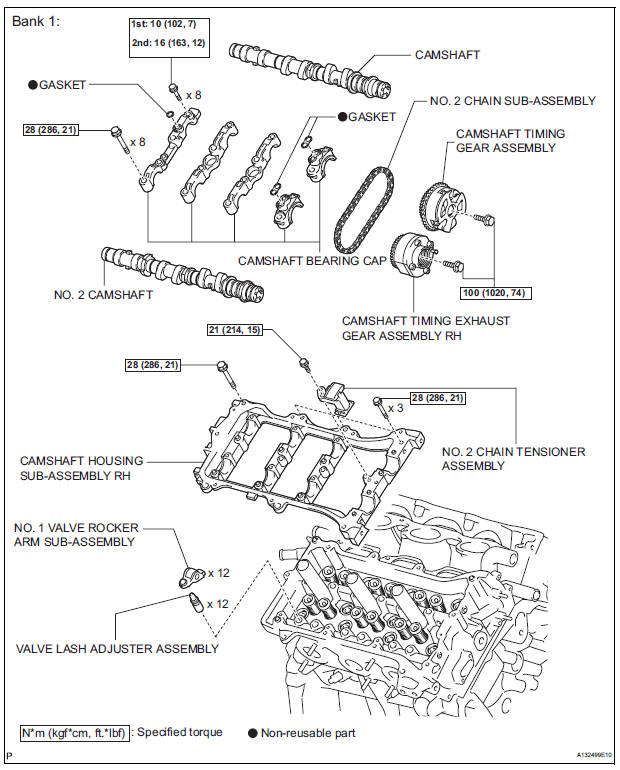

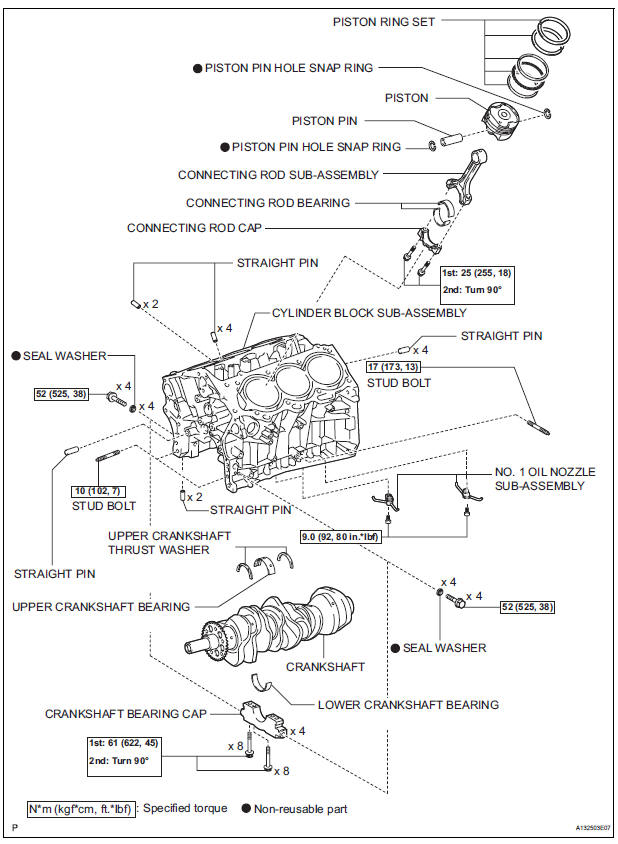

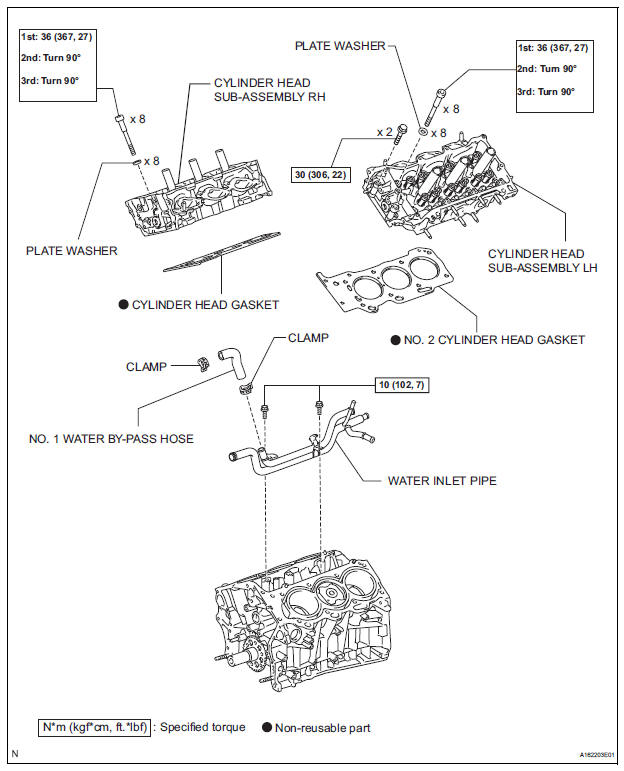

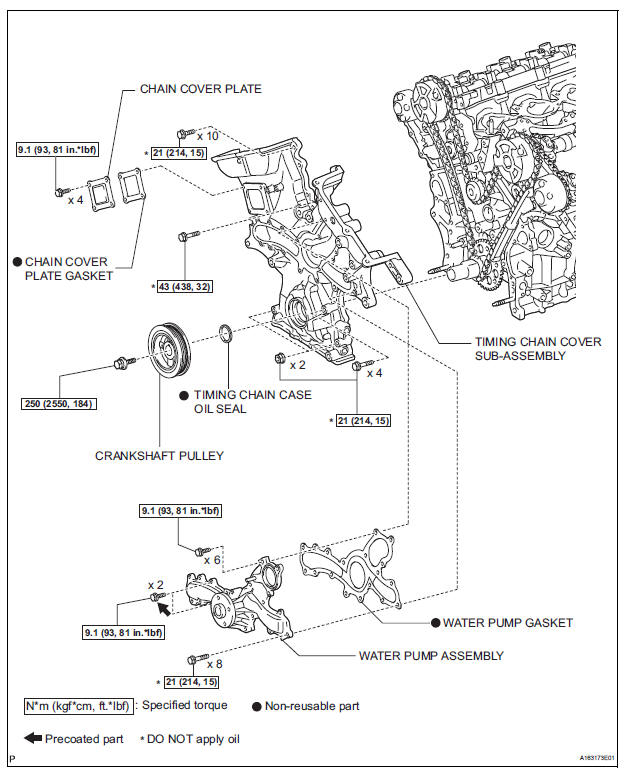

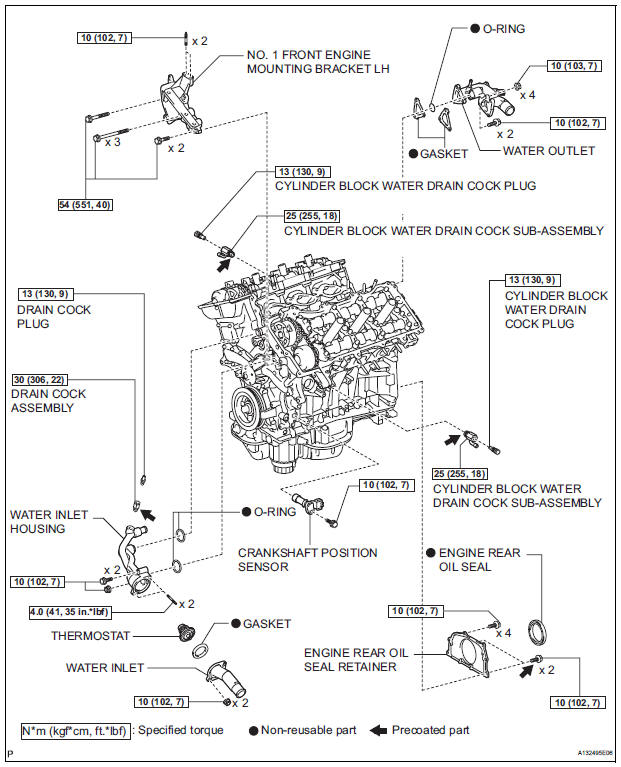

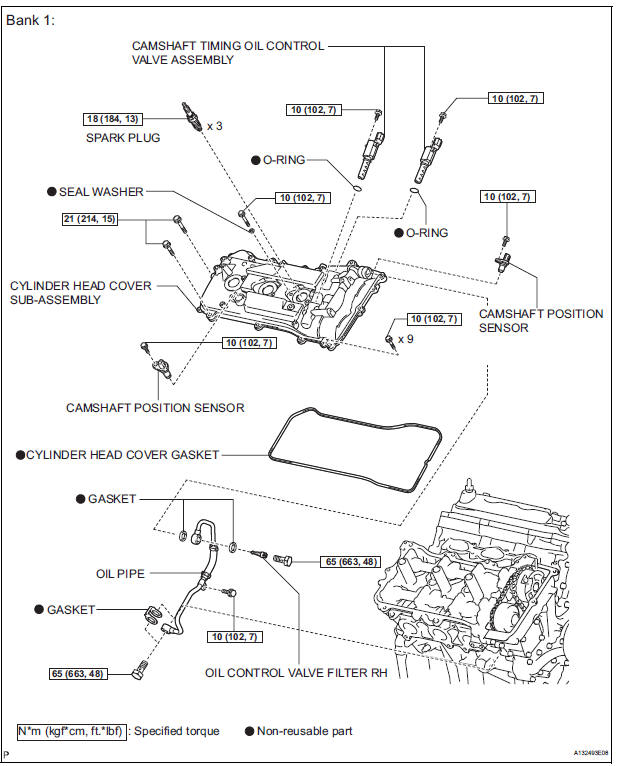

COMPONENTS

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine unit

Engine assembly
Components REMOVAL 1. DISCHARGE FUEL SYSTEM PRESSURE (See page FU-13) 2. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See page AC-172) 3. REMO ...

Disassembly
1. Remove oil filler cap sub-assembly (A) remove the oil filler cap sub-assembly and oil filler gasket. 2. REMOVE SPARK PLUG (a) Remove the spark plugs. 3. REMOVE OIL PAN DRAIN PLUG (a) Remove t ...
