1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

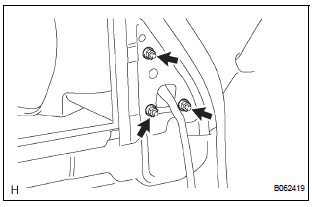

  1.  Install the mirror with the 3 nuts.

    Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  2.  Connect the connector.
Inspection
1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/o Memory)  Disconnect the mirror connector.  Check operation of the outer mirror. Apply battery voltage and inspect operation ...

Outer mirror switch
Inspection 1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Memory)  The L side of the left / right adjustment switch: Inspect the mirror switch resistance. Standard resistance (Left s ...
