Toyota Sienna Service Manual: Key reminder warning system

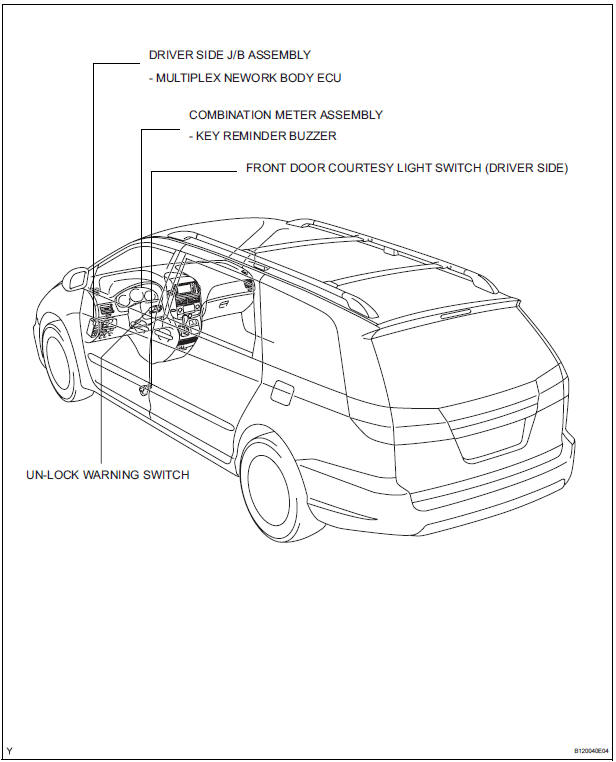

Parts location
System description
1. KEY REMINDER WARNING SYSTEM DESCRIPTION
- When the driver side door is opened with the ignition key in the ACC or LOCK position, this system causes a buzzer to sound in order to warn the driver that the ignition key has not been removed.
- How to proceed with troubleshooting
- Operation check
- Terminals of ECU
- Diagnosis system
- Data list / active test
- Unlock Warning Switch Circuit
Only Wireless Door Lock Control Function does not Operate
DESCRIPTION
The door control receiver receives a signal from the transmitter and sends
this signal to the multiplex
network body ECU. Then, the multiplex network body ECU controls operation of the ...
How to proceed with
troubleshooting
HINT:
Use these procedures to troubleshoot the key reminder
warning system.
The intelligent tester should be used in steps 3 and 5.
1 VEHICLE BROUGHT TO WORKSHOP
2 CUSTOMER PRO ...
