INSPECTION
1. POWER BACK DOOR WARNING BUZZER

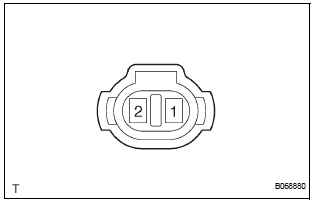

- Check the resistance of the buzzer.
Resistance
If the result is not as specified, replace the buzzer.
NOTICE:
- The circuit that causes the buzzer to sounds is built into the back door ECU, not around the buzzer.
- Directly applying battery voltage to the buzzer does not cause the buzzer to sound.
Power back door drive unit
INSPECTION
1. INSPECT POWER BACK DOOR DRIVE UNIT
Remove the unit.
Apply battery voltage to the terminals and check the
motor operation.
Standard
If the result is not as specified, ...
Back door support
COMPONENTS
...
