Toyota Sienna Service Manual: Radio receiver

Television Display Power Source Circuit

DESCRIPTION This is the power source circuit to operate the television display assembly. WIRING DIAGRAM INSPECTION PROCEDURE 1 INSPECT TELEVISION DISPLAY ASSEMBLY Disconnect the connec ...

Removal

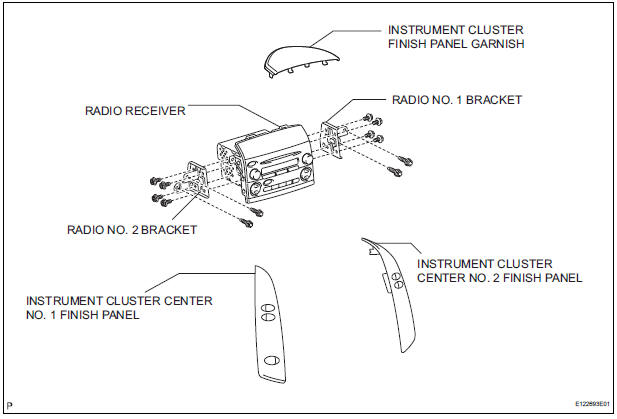

1. REMOVE INSTRUMENT CLUSTER CENTER NO. 1 FINISH PANEL 2. REMOVE INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL 3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH 4. REMOVE RADIO RECEIVER &nbs ...

Other materials:

Installation
1. INSTALL REAR NO. 2 SEAT ASSEMBLY  Lock the seat leg rear to the floor striker.  Lock the seat leg front to the floor striker.  Install the rear No. 2 seat assembly with the 6 bolts. Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf) NOTICE: Tighten the bolts in the order sho ...

Camshaft Position "B" Actuator Circuit / Open
DTC P0013 Camshaft Position "B" Actuator Circuit / Open (Bank 1) DTC P0023 Camshaft Position "B" Actuator Circuit / Open (Bank 2) DESCRIPTION The Variable Valve Timing (VVT) system includes the ECM, OCV and VVT controller. The ECM sends a target duty-cycle control signal ...

Inspection
1. V (a) Inspect VSV operation. (1) Using an ohmmeter, measure the resistance according to the value(s) in the table below.V Standard resistance If the result is not as specified, replace the vsv. (B) inspect the vsv for ground. (1) Using an ohmmeter, measure the resistance accordin ...
