Toyota Sienna Service Manual: Rear no. 2 Seat assembly (for Manual Seat Type LH Side)

Toyota Sienna Service Manual / Seat / Rear no. 2 Seat assembly (for Manual Seat Type LH Side)

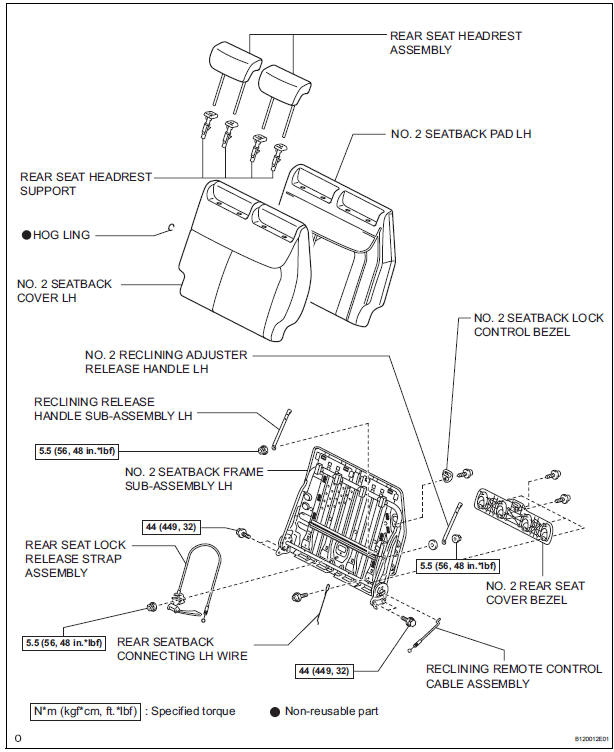

COMPONENTS

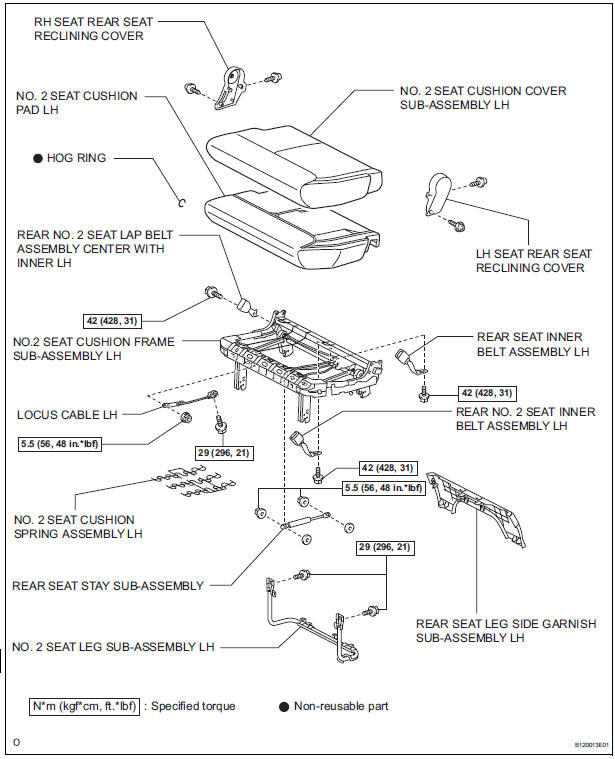

COMPONENTS

COMPONENTS

Installation
1. INSTALL REAR NO. 1 SEAT ASSEMBLY CENTER  Place the seat in the cabin. NOTICE: Be careful not to damage the body.  Install the rear seat.  Install the seat belt anchor p ...

Removal
1. REMOVE REAR SEAT LEG SIDE GARNISH SUBASSEMBLY LH  Disengage the clips and remove the seat leg side garnish. 2. REMOVE REAR NO. 2 SEAT ASSEMBLY LH Remove the bolt and locus cab ...
