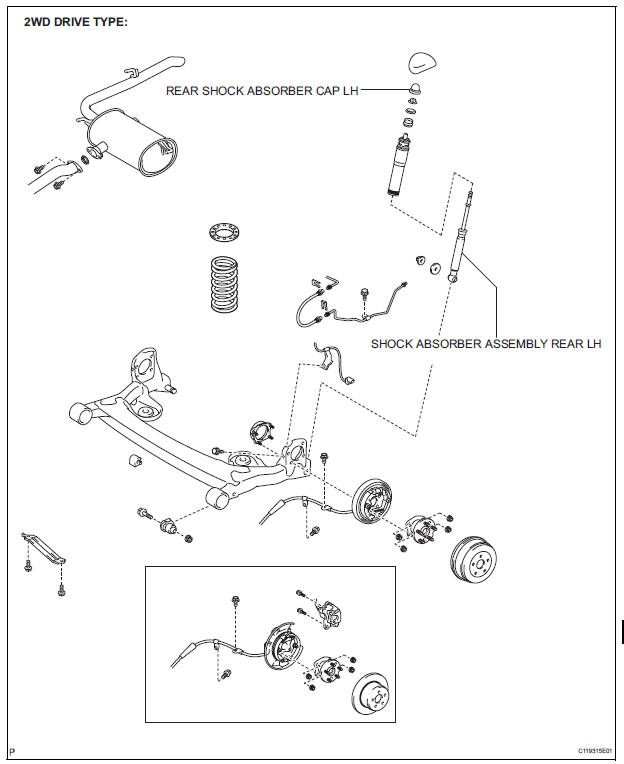

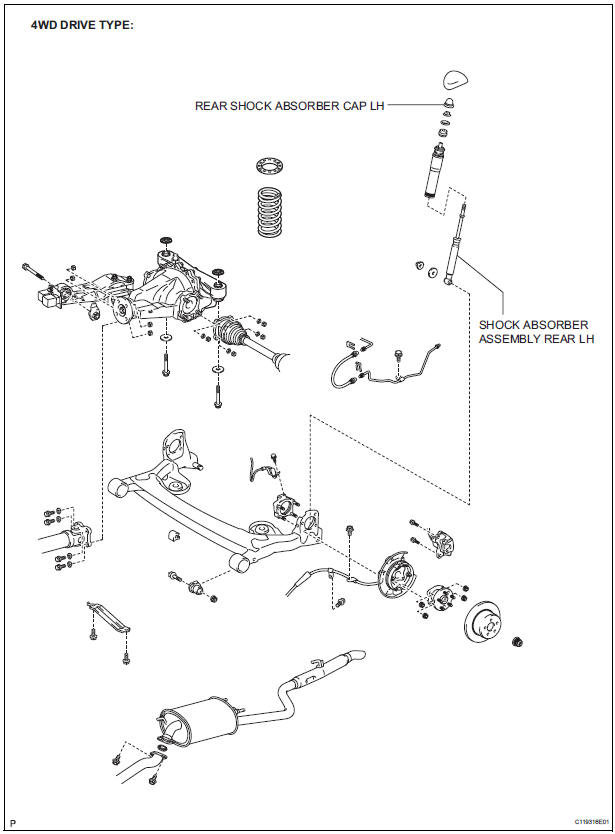

COMPONENTS

Rear shock absorber

Rear shock absorber

Installation
1. INSTALL REAR COIL SPRING INSULATOR UPPER LH (a) Install the insulator upper LH to the coil spring rear LH. 2. INSTALL COIL SPRING REAR LH (a) Apply a shop rug to the rear axle beam asse ...

Removal
1. REMOVE REAR WHEEL 2. REMOVE REAR SHOCK ABSORBER CAP LH (a) Remove the shock absorber head cover. (b) Remove the shock absorber cap LH. 3. REMOVE SHOCK ABSORBER ASSEMBLY REAR LH (a) S ...
