Toyota Sienna Service Manual: Reassembly

1. INSTALL BACK DOOR STOPPER LOWER

  1. Install the 2 stoppers with the 4 bolts.

    Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

2. INSTALL BACK DOOR BASE STOPPER BRACKET

  1. Install the 2 stopper brackets with the 4 bolts.

    Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

3. INSTALL BACK DOOR LOCK ASSEMBLY

INSTALL BACK DOOR LOCK ASSEMBLY

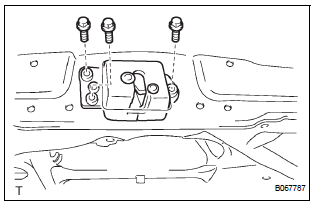

  1. Install the lock with the 3 bolts.

    Torque: 12.5 N*m (112 kgf*cm, 9 ft.*lbf)

4. INSTALL BACK DOOR PULL STRAP

 INSTALL BACK DOOR PULL STRAP

  1. Install the strap with the bolt.

    Torque: 5.0 N*m (51 kgf*cm, 42 in.*lbf)

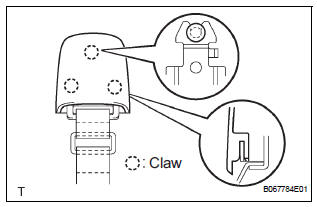

  2. Install the strap cover.
Adjustment
HINT: On the RH side, use the same procedures as on the LH side. Since a centering bolt is used as door hinge mounting bolts on the body side and the door side, the door cannot be adjusted ...

Back door opener switch
INSPECTION 1. INSPECT BACK DOOR OPENER SWITCH Inspect the resistance of the switch. Resistance If the result is not as specified, replace the switch. ...
