Toyota Sienna Service Manual: Removal

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT BUMPER ASSEMBLY

3. REMOVE HEADLIGHT ASSEMBLY

  1.  Disconnect the connectors.

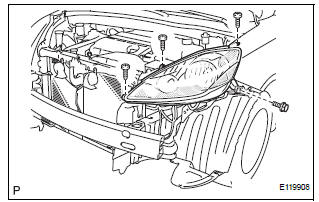

  2.  Remove the bolt, 3 screws and headlight assembly.
