INSPECTION PROCEDURE
1 CHECK MAP DISC

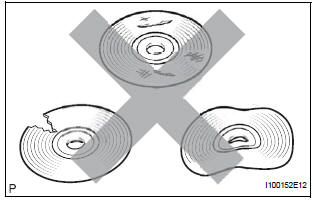

OK: No deformations or cracks on map disc.
2 SET DESTINATION
OK: Route can be correctly calculated.
NORMAL OPERATION
Diagnosis system
1. CHECK DLC3
The vehicle's ECU uses ISO 15765-4 for
communication protocol. The terminal arrangement
of the DLC3 complies with SAE J1962 and matches
the ISO 15765-4 format.
NOTICE:
*: Before measuring the resistance, leave the
vehicle as is for at least 1 minute and do no ...
For vehicles equipped with vehicle stability control (vsc) system
(a) Notices when using drum tester
Notices when using drum tester.
(1) When using a drum tester, be sure to start the
engine with the ignition switch OFF, and connect
SST to the terminals TS and CG of the DLC3
before the measurement in order to cancel the
VSC operation.
SST 09843-18040
...
Transmission Range Sensor Circuit Malfunction (PRNDL Input)
DESCRIPTION
The park/neutral position switch detects the shift lever position and sends
signals to the ECM.
HINT:
After confirming DTC P0705, use the intelligent tester to confirm the PNP
switch signal in the ALL menu
(to reach the ALL menu: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ...
