Toyota Sienna Service Manual: Seat heater system

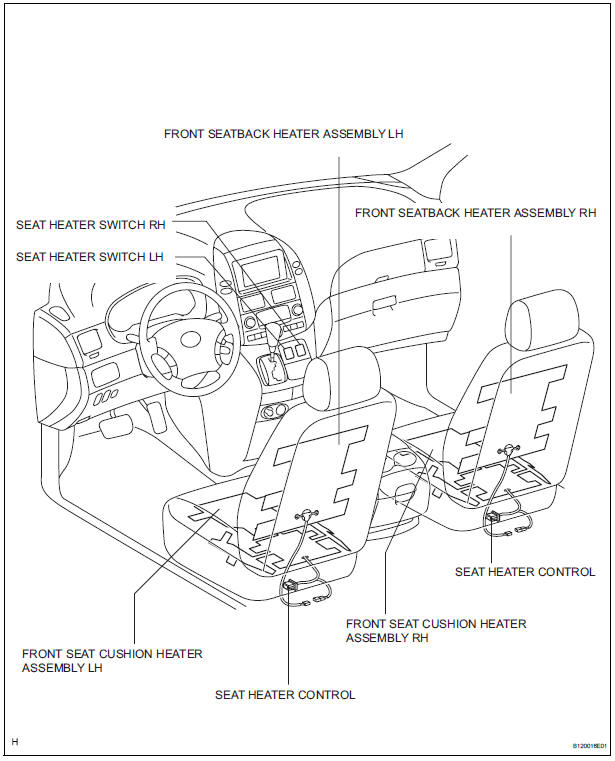

PARTS LOCATION
ECU Power Source Circuit
DESCRIPTION
The position control ECU and switch assembly (power seat control switch and
ECU) is contained in the
switch assembly.
During manual operation, only one switch signal is accepted. If ...
Problem symptoms table
HINT:
Use the table below to help determine the cause of the
problem symptom. The potential causes of the symptoms are
listed in order of probability in the "Suspected Area" column
of th ...
